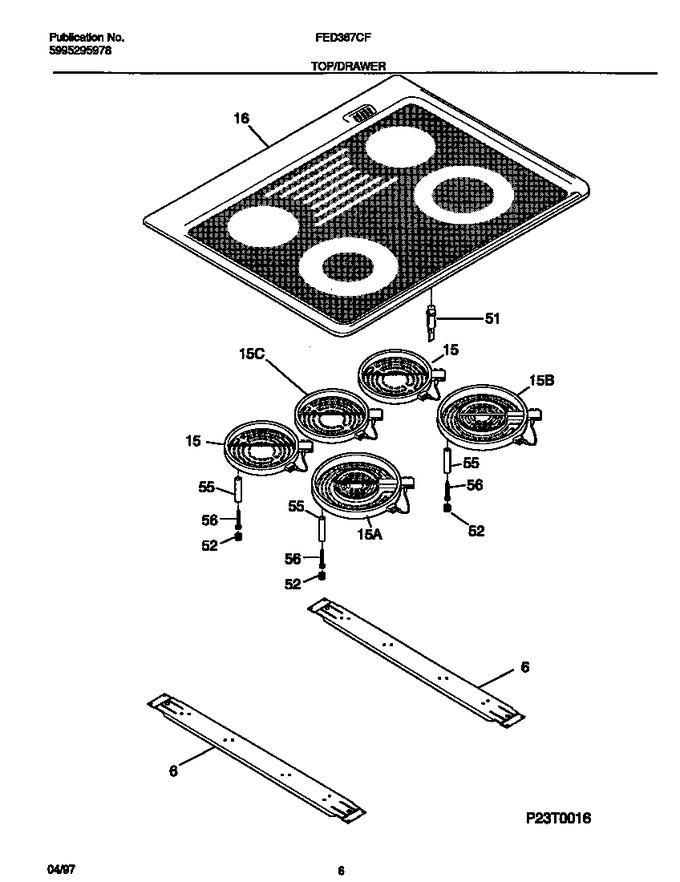

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318111100		Support-element, (2)		Appelez-nous	-
15	316098200		Element-warmer, 120v/100w		Appelez-nous	-
15	318198817		Element-surface, Radiant, Small/6 Inch, 1200w, (2), Limi   (Replaces: 316010203)			Immediately	$ 192.78
15	316049702		Element-surface, Dual, 9``, 2100w/700w, Limit Sw. Incl.		Appelez-nous	-
15	389082702		Element-surface, Radiant, Dual, 2100w/1000w, Limit Sw In   (Replaces: 316049703)				$ 284.39
16	318079505		Main Top, Glass				$ 746.97
51	5303297484		Light-indicator, Hot Surface, (4)		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
*66615	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*66616	318125900		Bracket-indicator Light, Hot Surface		Appelez-nous	-
*66617	5303300414		Spacer, Cork & Rubber				$ 13.18
