SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

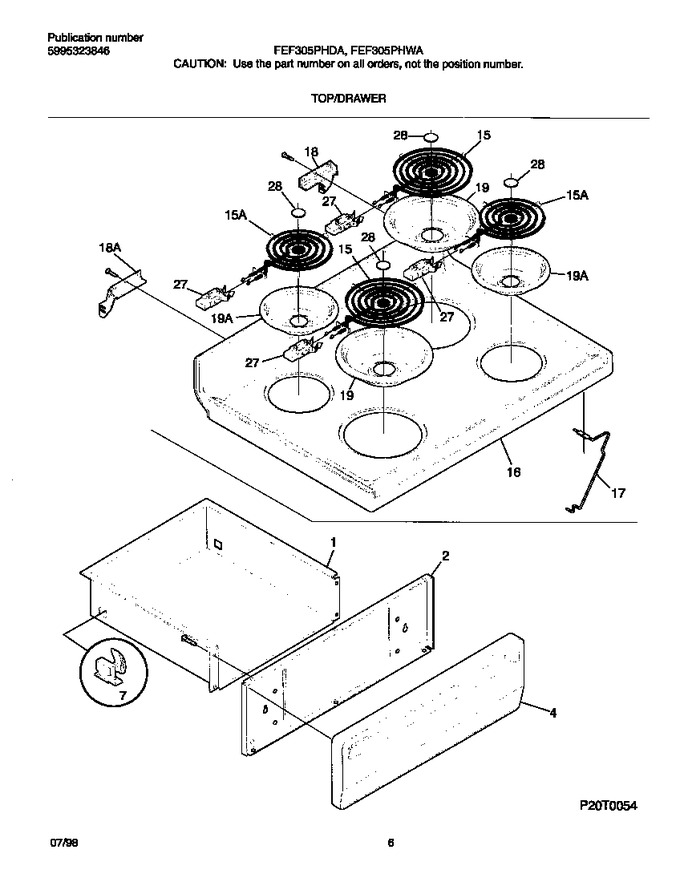

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	3051450		Element,surface ,8`` Large		Appelez-nous	-
15	3051449		Element-surface, Small		Appelez-nous	-
16	5303013511		Main Top (white)		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
19	316048414		Pan-surface Element,chrome ,small/6 Inch,(2)			Immediately	$ 16.11
19	316048413		Pan-surface Element,chrome ,large/8 Inch,(2)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
*88052	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*88053	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*88054	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*88056	316089600		Spacer-drawer, (2)		Appelez-nous	-
*88057	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*88058	5308014215		Screw,8-x 1/2 ,(4)				$ 2.28
*88059	316001731		Harness-wiring,surface Element		Appelez-nous	-
