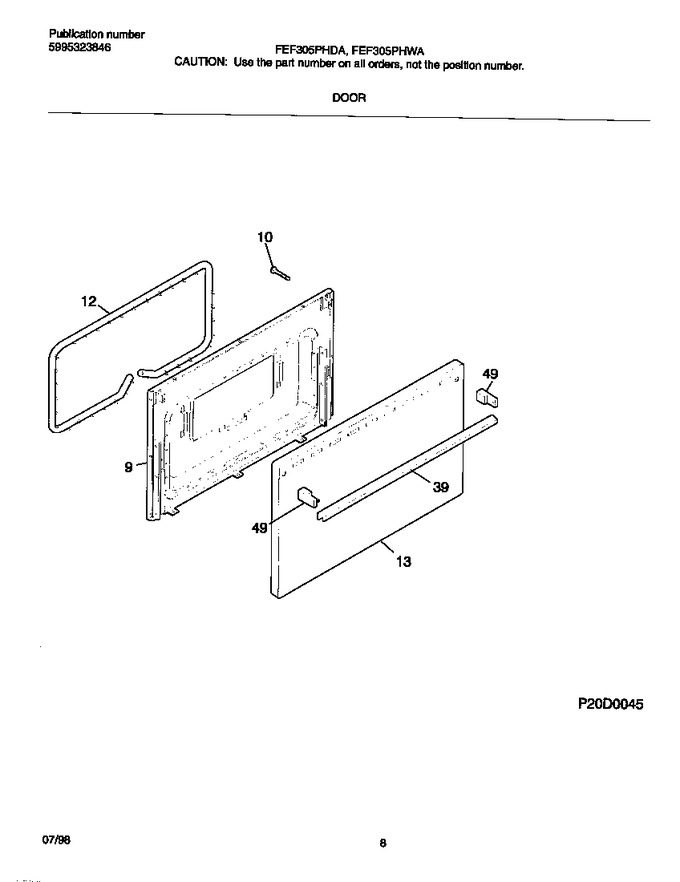

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3202315		Panel, Oven Door, White		Appelez-nous	-
39	316020204		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
*88061	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*88062	316102200		Foil-aluminum		Appelez-nous	-
*88064	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*88065	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*88066	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34
