SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

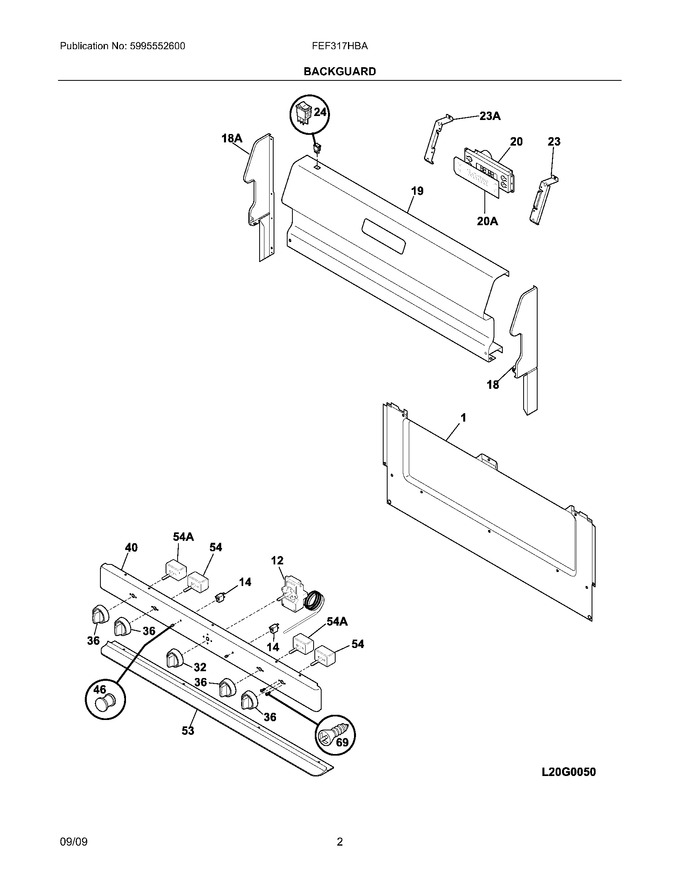

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289640		Shield-backguard,rear Wall				$ 144.64
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
18	316263402		End Cap,black ,rh		Appelez-nous	-
19	316263370		Panel,backguard ,black		Appelez-nous	-
23	316263500		Bracket,clock Mtg ,rh		Appelez-nous	-
32	316102330		Knob,thermostat ,black		Appelez-nous	-
36	316102307		Knob,control ,black		Appelez-nous	-
40	316201800		Panel,manifold ,black		Appelez-nous	-
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 16.77
53	316238500		Shield,heat ,extrusion		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
18A	316263403		End Cap,black ,lh		Appelez-nous	-
20A	316115320		Overlay,clock ,black		Appelez-nous	-
23A	316263501		Bracket,clock Mtg ,lh		Appelez-nous	-
F12	316215901		Thermostat				$ 338.99
F20	316440000		Clock/timer				$ 187.53
F24	5304527841		Switch,rocker ,black ,oven Light   (Replaces: 316448700)			Immediately	$ 11.38
F54	316498602		Switch,infinite ,small Element				$ 88.38
F54A	316498603		Switch,infinite ,large Element				$ 81.88
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
