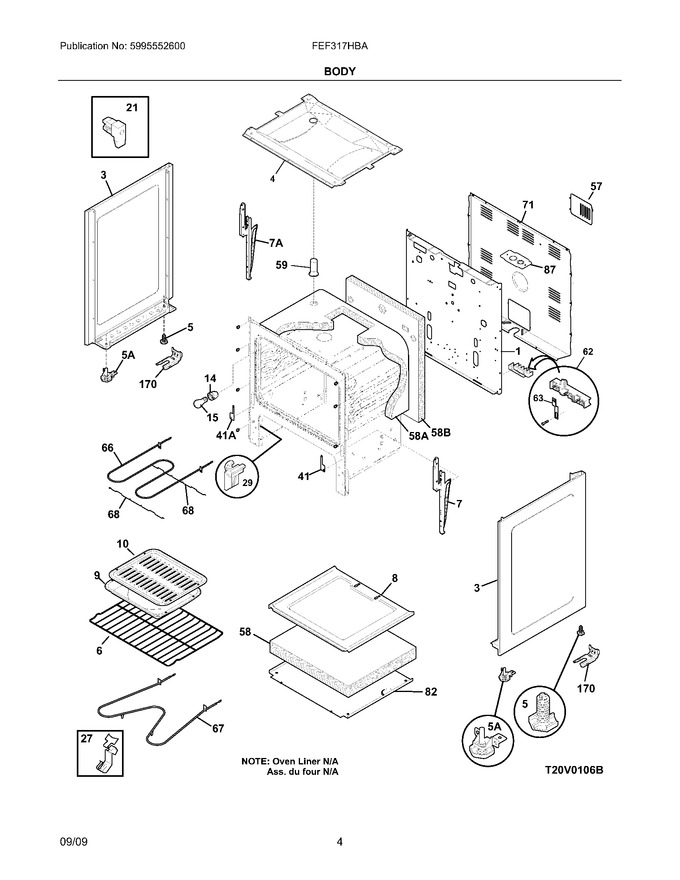

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080805		Panel,main Back ,dipped ,black ,short		Appelez-nous	-
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 133.93
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 134.69
4	316210101		Burner Box		Appelez-nous	-
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316067902		Rack,oven ,(2)			Immediately	$ 103.10
7	316566208		Hinge,oven Door ,rh				$ 63.13
8	316495903		Panel,,oven Bottom				$ 108.68
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
21	316408000		Clip,bodyside				$ 18.20
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
57	316457801		Cover,access				$ 12.89
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073601		Tube, Oven Vent		Appelez-nous	-
63	316542600		Plate,grounding Strap		Appelez-nous	-
67	316075103		Element,bake   (Replaces: 316075104)			Immediately	$ 42.36
68	316203400		Support,broil Element				$ 70.88
71	316422305		Shield,rear Wall				$ 99.49
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
58A	316047707		Insulation, 1`` ,oven Wrapper				$ 150.92
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
7A	316566209		Hinge,oven Door ,lh				$ 71.26
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F170	316541700		Template,anti-tip		Appelez-nous	-
F62	5303935271		Terminal Block Kit				$ 73.56
F66	316203200		Element-broil			Immediately	$ 164.45
NI	316427400		Plate,weight ,(3)		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316248900		Spacer,shield ,rear Wall		Appelez-nous	-
NI	316499101		Harness,wiring ,main		Appelez-nous	-
NI	3051367		Clip-wire		Appelez-nous	-
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 15.22
NI	316210800		Plug,button				$ 10.63
NI	316246400		Plug,button ,oven Probe		Appelez-nous	-
