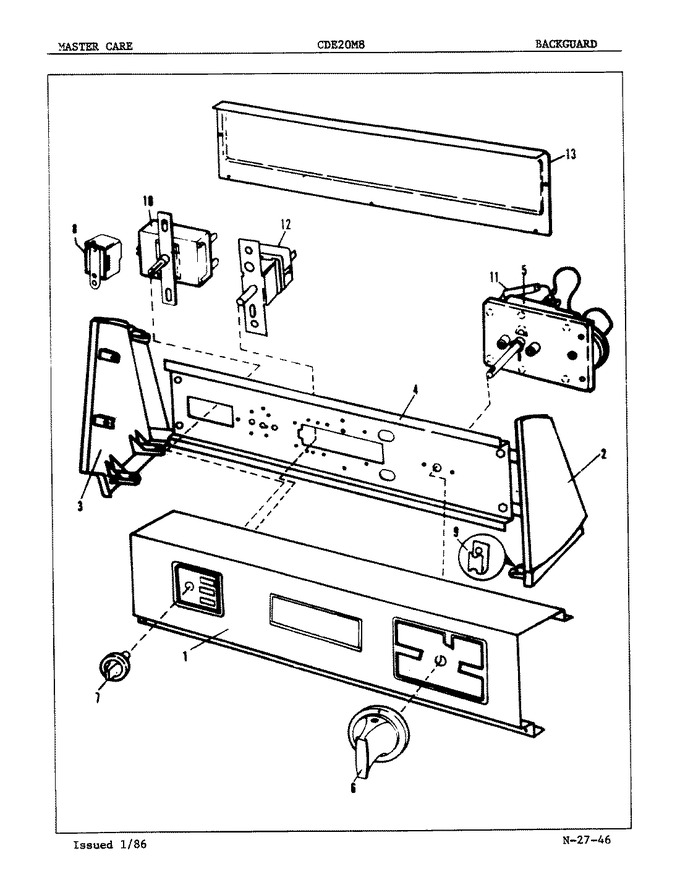

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7649		Screw		Appelez-nous	-
1	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
1	53-0834		Control Panel		Appelez-nous	-
2	53-0264		Rh Endcap		Appelez-nous	-
3	25-7760		Screw		Appelez-nous	-
3	53-0278		Trim, End Cap (lt)		Appelez-nous	-
3	53-0277		Trim, End Cap (rt)		Appelez-nous	-
3	53-0265		Lh Endcap		Appelez-nous	-
4	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
4	53-0365		Control Shield		Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
5	25-0205		Screw		Appelez-nous	-
5	53-0659		Timer		Appelez-nous	-
5	63-5685		Timer Motor		Appelez-nous	-
6	53-0729		Timer Knob Asm		Appelez-nous	-
7	35-0167		Selector Knob		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
8	63-6731		Buzzer		Appelez-nous	-
9	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
10	53-0392		Selector Switch		Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
11	63-6743		Resistor Assy.		Appelez-nous	-
12	53-0346		Switch, Wrinkle Out		Appelez-nous	-
12	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
13	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
13	34-9487		Plate, Reinforcement		Appelez-nous	-
13	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
13	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
13	25-7697		Screw		Appelez-nous	-
13	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
13	53-0268		Rear Shield		Appelez-nous	-
13	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
