Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 53-0124 Cabinet Top E Appelez-nous -
2 53-0667 Cabinet Asm E Appelez-nous -
3 63-5712 Hinge, Cabinet Top E Appelez-nous -
4 WP90767 Screw   (Replaces: 25-3092) E In-Stock Immediately $ 7.04

4 33-0930 Pad, Top Hinge E Appelez-nous -
5 25-3034 Clip, Wiring E Appelez-nous -
6 33-2653 Bumper, Cabinet E Appelez-nous -
7 53-0126 Front Panel E Appelez-nous -
10 25-7817 Clip, U-type E Appelez-nous -
10 WP489478 Screw, Front Panel To Cabinet   (Replaces: 25-7820) E Special Order $ 6.98

11 WP25-7220 Clip, Cabinet Top   (Replaces: 25-7220) E Special Order $ 10.77

12 63-6148 Pin, Locator E Appelez-nous -
13 WP3400029 Nut, Locator Pin   (Replaces: 25-0224) E In-Stock Immediately $ 6.98

13 53-0200 Sleeve, Locator Pin E Appelez-nous -
14 12001324 Collector Duct   (Replaces: 53-0917) E Special Order $ 187.37

14 489392 Screw 8-18x1/2 Truss H   (Replaces: 25-7810) E Special Order $ 12.02

15 53-0204 Seal E Appelez-nous -
16 53-0123 Clip E Appelez-nous -
17 WP53-0918 Filter, Lint   (Replaces: 53-0918) E In-Stock Immediately $ 84.45

17 53-0701 Lint Screen E Special Order $ 39.15

18 WP31001637 Seal Assy (gray)   (Replaces: 53-0282) E Special Order $ 30.62

19 53-0154 Panel, Outer Door (wht) E Appelez-nous -
20 53-0104 Inner Panel E Appelez-nous -
20 53-0740 Inner Door F Appelez-nous -
21 53-0119 Clip, Hinge E Appelez-nous -
22 53-0251 Pad, Door E Appelez-nous -
23 53-0252 Pad, Door E Appelez-nous -
24 25-7770 Screw, Outer To Inner Door E Appelez-nous -
24 WP31001529 Door Seal   (Replaces: 53-0648) E Special Order $ 115.24

25 25-3534 Plug Button, Door E Appelez-nous -
26 489392 Screw 8-18x1/2 Truss H   (Replaces: 25-7810) E Special Order $ 12.02

26 53-0116 Door Handle E Appelez-nous -
27 53-0122 Hinge, Door E Appelez-nous -
28 LA-1003 Door Catch Kit (incl. 21 & 22) E In-Stock Immediately $ 24.51

28 53-0121 Twin Nut E Appelez-nous -
28 W10756178 Screw, No.6-20 1/2 Flthd Torx   (Replaces: 25-7809) E Special Order $ 5.39

29 LA-1003 Strike, Door   (Replaces: 73-0033) E In-Stock Immediately $ 24.51

30 LA-1003 Door Catch   (Replaces: 53-0882) E In-Stock Immediately $ 24.51

31 WP489483 Screw, No.10 Torq Limiting   (Replaces: 25-7828) E Special Order $ 9.78

31 53-0135 Support, Power Cord E Appelez-nous -
32 53-0136 Cover, Supply Cord E Appelez-nous -
32 W10124350 Not Required Part Or See Note Screw- Purchase Locally E Appelez-nous -
33 53-0133 Shield, Heat E Appelez-nous -
33 WP12990527 Screw, Sems   (Replaces: 25-3457) E In-Stock Immediately $ 7.15

34 LA-1005 Switch Kit (incl. 23 & 24) E Special Order $ 31.33

35 53-0148 Switch, Door E Special Order $ 22.49

36 WP31001319 Clip, Switch   (Replaces: 63-5990) E Special Order $ 0.84


    View Diagram in Separate Window     Print Icon   Print Part List

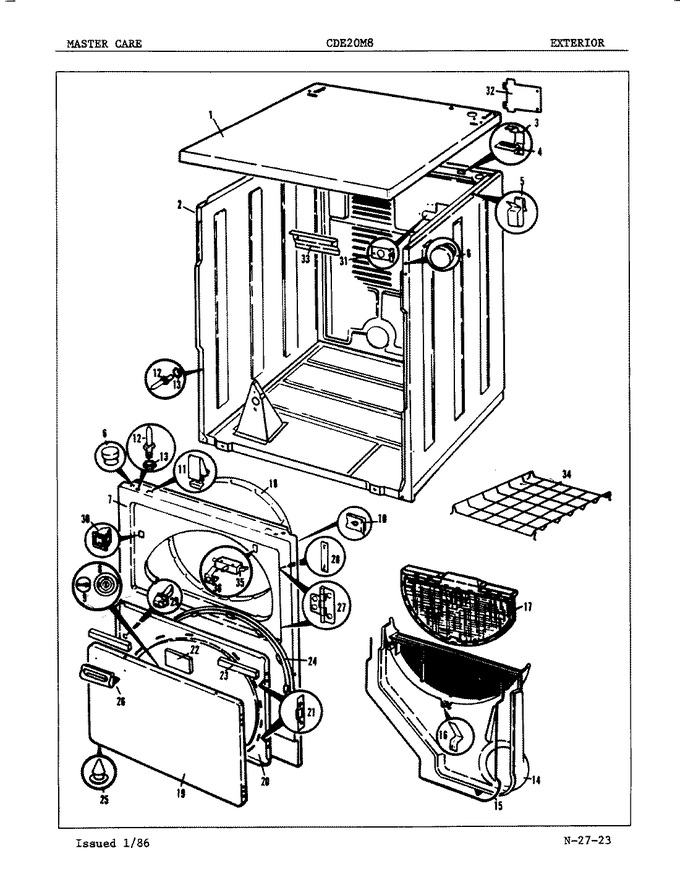

Diagram for CDE20M8
