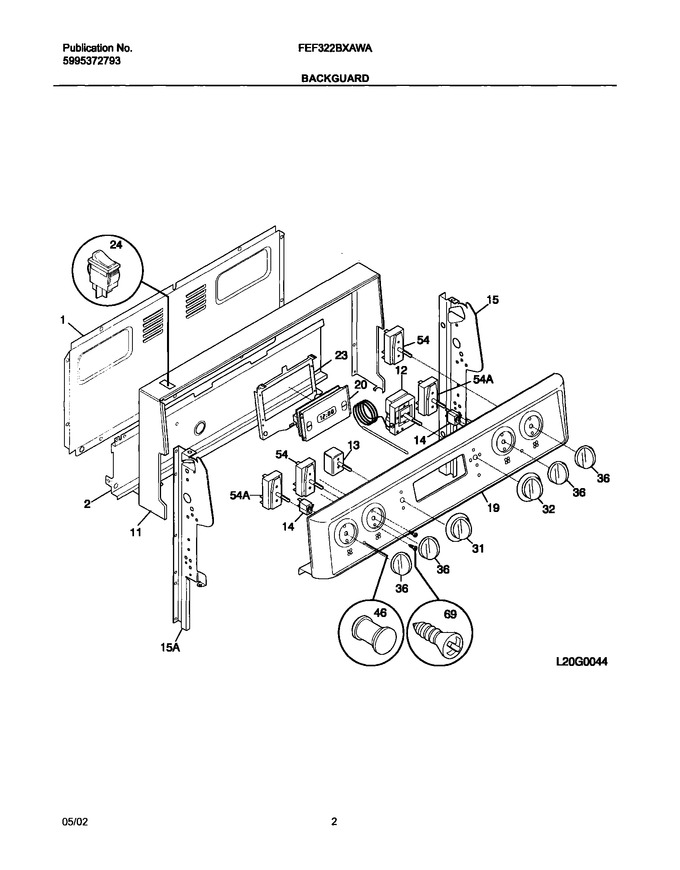

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081600		Shield,backguard ,galv Steel ,rear Wall		Appelez-nous	-
2	316015907		Shield,backguard ,black ,inner		Appelez-nous	-
11	316083719		Trim,wrapper ,black		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100529		Panel-backguard,black		Appelez-nous	-
23	316033204		Bracket-timer		Appelez-nous	-
31	316109602		Knob,selector ,black		Appelez-nous	-
32	316109600		Knob,thermostat ,black		Appelez-nous	-
36	316025108		Knob-control,black		Appelez-nous	-
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316023109		Support,backguard ,lh		Appelez-nous	-
20A	316098007		Overlay-clock,black		Appelez-nous	-
F12	316032405		Thermostat,oven ,non Self-clean				$ 303.35
F13	316032500		Switch, Selector		Appelez-nous	-
F20	316120500		Clock-timer		Appelez-nous	-
F24	5304527841		Switch,oven Light ,black ,rocker   (Replaces: 316118100)			Immediately	$ 11.38
F54	5303935086		Switch,infinite ,small Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite ,large Element   (Replaces: 316021501)			Immediately	$ 51.68
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316248900		Spacer,shield ,rear Wall		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
