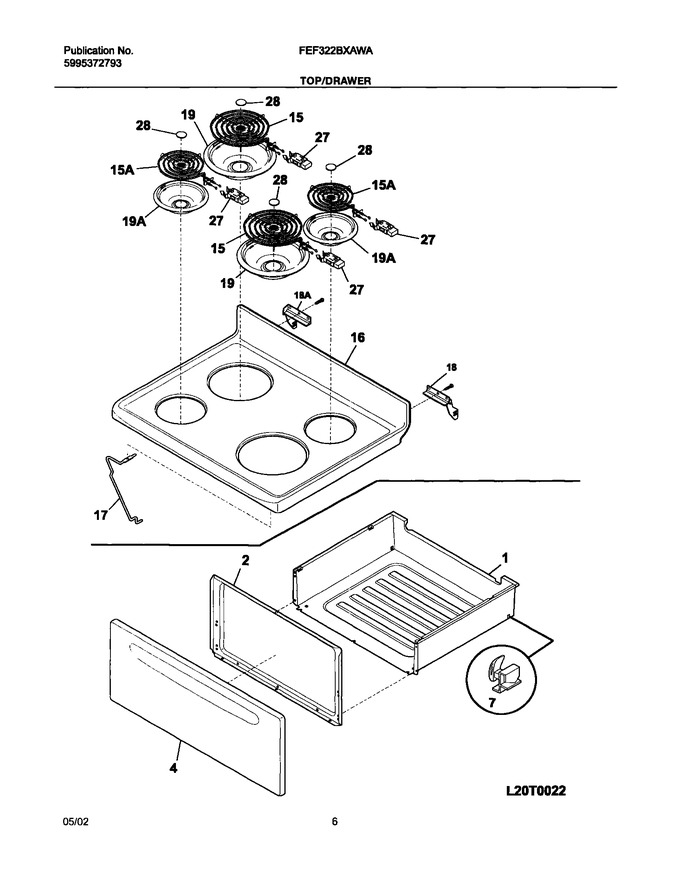

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011503 | Drawer |
|
$ 131.51 | |||||
| 2 | 316231500 | Liner,drawer |
|
$ 54.40 | |||||
| 4 | 316231305 | Panel,drawer ,white |
|
$ 55.80 | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 316202388 | Main Top, White (Replaces: 316020907) |
|
$ 407.24 | |||||
| 17 | 316057601 | Rod,support ,main Top |
|
$ 64.49 | |||||
| 18 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 19 | A316222301 | Pan,surface Element ,large ,black (Replaces: 318067051) |
|
Immediately | $ 12.53 | ||||
| 28 | 5303017715 | Medallion,1 1/2``dia ,black ,surface Element |
|
$ 64.46 | |||||
| 18A | 5303273063 | Hinge-main Top (lh) |
|
$ 48.41 | |||||
| 19A | A316222201 | Pan-surface Element,small ,black (Replaces: 318067041) |
|
Immediately | $ 14.64 | ||||
| F15 | 5308011964 | Element,surface ,large/8 Inch ,(2) ,medallion Incl |
|
$ 209.08 | |||||
| F15A | 316115400 | Element,surface ,small 6`` |
|
- | |||||
| F27 | 5303935058 | Terminal Block Kit, Surface Element (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| NI | 5308014215 | Screw |
|
$ 2.28 | |||||
| NI | 316021109 | Screw,8-18 X 0.500 ,white (Replaces: 316021112) |
|
Immediately | $ 27.50 | ||||
| NI | 316580420 | Wiring Harness,surface Element (Replaces: 316253501) |
|
Immediately | $ 196.47 | ||||
| NI | 316058600 | Clip,surface Element ,chrome ,(4) |
|
- | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5303280311 | Screw,wafer Hd Sq Dr ,10-32 X 0.312 |
|
$ 6.62 | |||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 10.02 |
