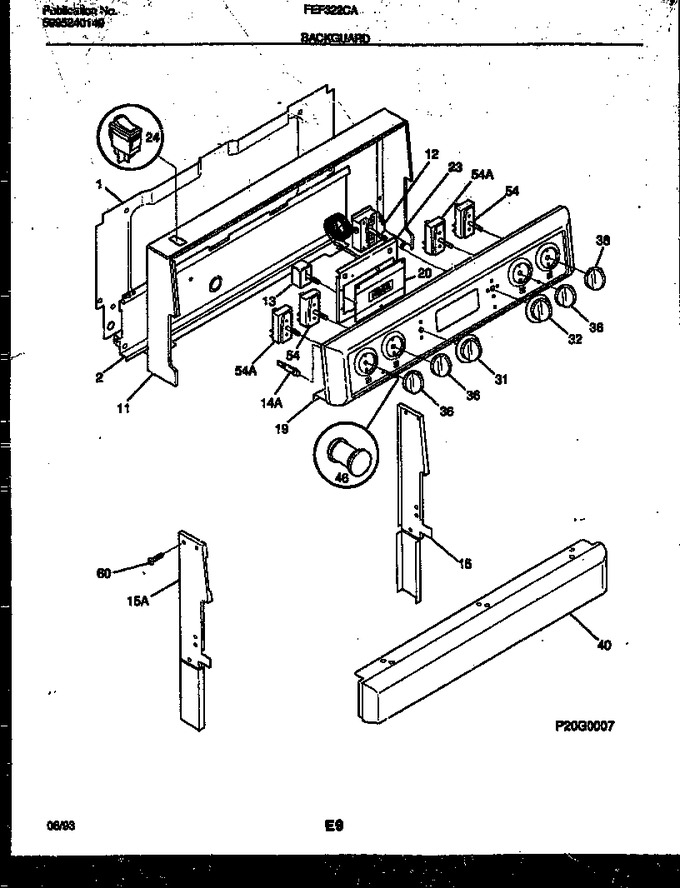

02 - Backguard


03 - Body Parts


04 - Cooktop And Drawer Parts


05 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316015701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015901		Shield-backguard, Inner		Appelez-nous	-
11	316034303		Trim-wrapper, White		Appelez-nous	-
12	316032400		Thermostat, Oven, Non Sc		Appelez-nous	-
13	316032500		Switch-selector, 3 Pos Nsc		Appelez-nous	-
15	316023102		Support-backguard, Rh		Appelez-nous	-
19	316024415		Panel-control, Metal		Appelez-nous	-
20	316045101		Clock/timer, Electronic, T.o.d.		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	316005603		Switch-oven Light, Rocker, White		Appelez-nous	-
31	316054905		Knob-selector		Appelez-nous	-
32	316054901		Knob-thermostat		Appelez-nous	-
36	316025101		Knob-control, White		Appelez-nous	-
40	316025801		Panel-manifold, White		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
14A	316022502		Light/lamp, Indicator, 250 V, (3)		Appelez-nous	-
15A	316023103		Support-backguard, Lh		Appelez-nous	-
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
