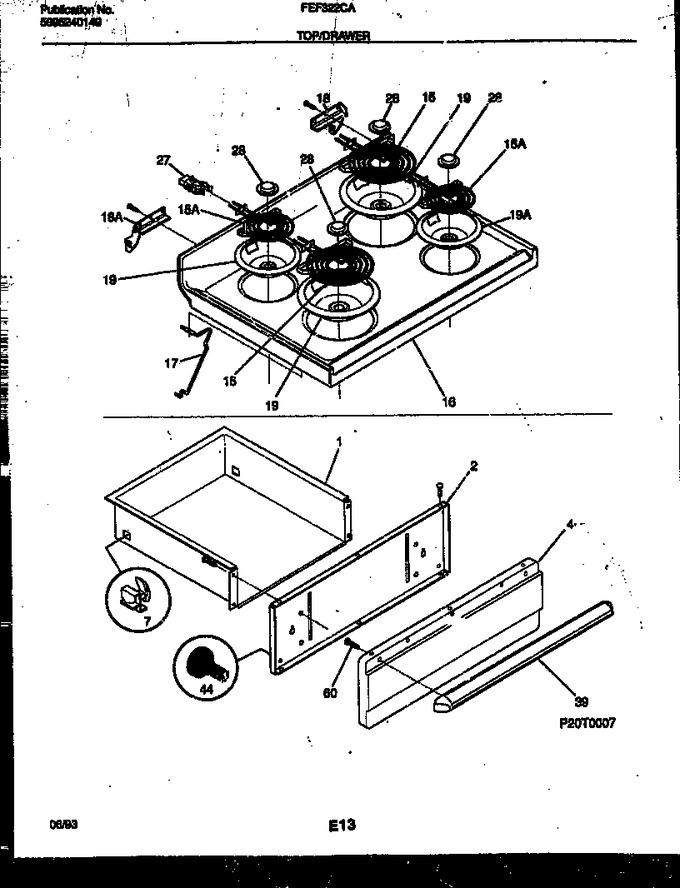

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 316056201 | Panel-drawer,white |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 15 | 5308011964 | Element-surface, Large/8 Inch |
|
$ 209.08 | |||||
| 16 | 5303288820 | Main Top, White |
|
- | |||||
| 17 | 316057600 | Rod-maintop Support |
|
- | |||||
| 18 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 19 | 316048413 | Pan-surface Element, Large/8 Inch (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 27 | 5303935058 | Terminal Block Kit,surface Element (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 28 | 3017801 | Medallion, Stainless Steel, Surf Elem |
|
- | |||||
| 39 | 316026101 | Handle-drawer, White |
|
- | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 60 | 5303281379 | Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2 |
|
- | |||||
| *78646 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| 15A | 5303015210 | Element-surface, Small/6 Inch |
|
- | |||||
| 18A | 5303273063 | Hinge-main Top (lh) |
|
$ 48.41 | |||||
| 18A | 5303288567 | Screw, 8-18 X 3/8, (4) (non-illustrated) |
|
- | |||||
| 19A | 5303205285 | Pan-surface Element, Small/6 Inch |
|
- | |||||
| 4A | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated) |
|
- |
