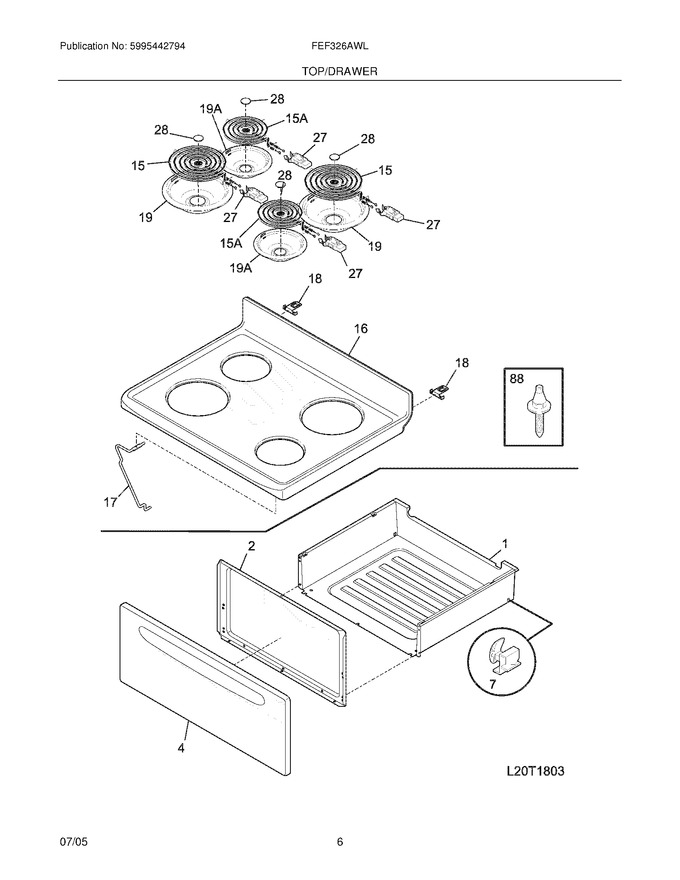

07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011503 | Drawer |
|
$ 131.51 | |||||
| 2 | 316231500 | Liner,drawer |
|
$ 54.40 | |||||
| 4 | 316231305 | Panel,drawer ,white |
|
$ 55.80 | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 316202388 | Main Top,white (Replaces: 316202363) |
|
$ 407.24 | |||||
| 17 | 316057601 | Rod,support ,main Top |
|
$ 64.49 | |||||
| 18 | 316436600 | Hinge Bracket,maintop ,(2) |
|
$ 45.36 | |||||
| 28 | 3017801 | Medallion, Stainless Steel, Surf Elem |
|
- | |||||
| 28 | 5303017715 | Medallion,1 1/2``dia ,black ,surface Element |
|
$ 64.46 | |||||
| F15 | 316442301 | Element,surface ,8`` ,large (Replaces: 5303012223) |
|
Immediately | $ 44.39 | ||||
| F15A | 318372211 | Element,surface ,6`` ,small (Replaces: 08067762) |
|
Immediately | $ 45.14 | ||||
| F19 | A316222301 | Pan,surface Element ,black ,lg/8 Inch ,(2),w/clip (Replaces: 5303935053) |
|
Immediately | $ 12.53 | ||||
| F19A | A316222201 | Pan,surface Element ,black ,sml/6 Inch ,(2),w/clip (Replaces: 5303935055) |
|
Immediately | $ 14.64 | ||||
| F27 | 5303935058 | Terminal Block Kit,surface Element (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| NI | 5308014215 | Screw`6-20 X 0.312 |
|
$ 2.28 | |||||
| NI | 316580420 | Wiring Harness,surface Element (Replaces: 316253501) |
|
Immediately | $ 196.47 | ||||
| NI | 316058600 | Clip,surface Element ,chrome ,(4) |
|
- | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 10.02 |
