SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

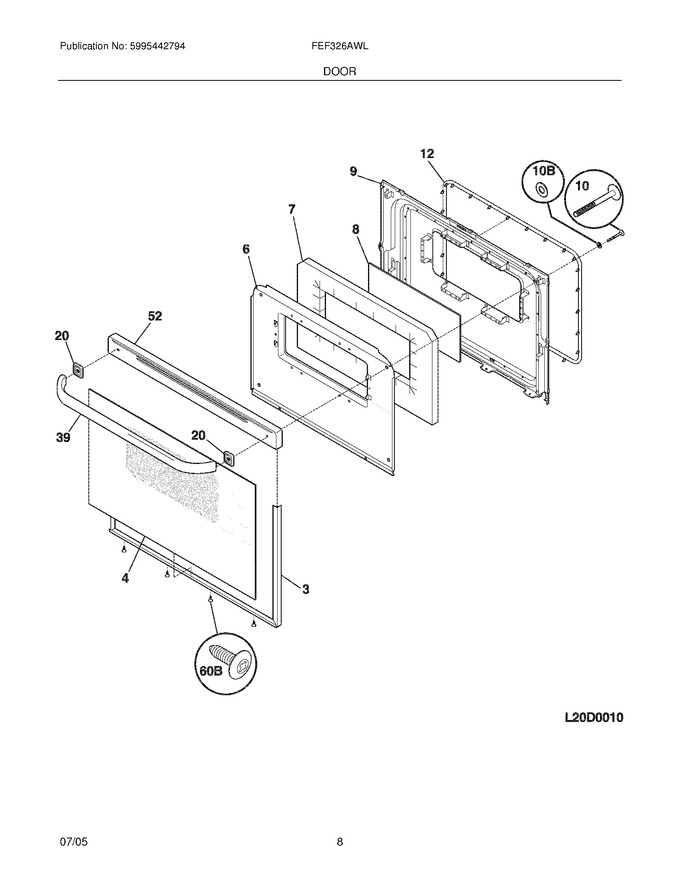

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935191		Trim Kit-door,3 Sided ,black ,w/tape And Foil				$ 141.75
4	5303935203		Glass,door Kit ,black ,outer ,w/ Foil Tape				$ 211.91
6	316222703		Shield,oven Door ,wool   (Replaces: 316222709)				$ 78.67
7	316236801		Insulation,oven Door				$ 58.59
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316230616		Liner,oven Door				$ 90.72
10	316001014		Screw,waf Hd Sq `10-24 X 1.6 ,handle ,(2)			Immediately	$ 47.03
12	316239700		Seal,oven Door			Immediately	$ 152.43
20	316248400		Spacer,handle ,black ,(2)		Appelez-nous	-
39	5304529996		Handle,oven Door ,black   (Replaces: 316248300)				$ 156.11
52	316491201		Cap,door Trim ,black   (Replaces: 316201005)				$ 99.94
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433600		Label,anti-tip		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46

    View Diagram in Separate Window       Print Part List
