SELECT A DIAGRAM

01 - Access Panel


02 - Blower Motor-blower/plenum


03 - Blower Motor-cooling


04 - Body


05 - Control Panel


06 - Door


07 - Internal Controls


08 - Oven


09 - Top Assembly

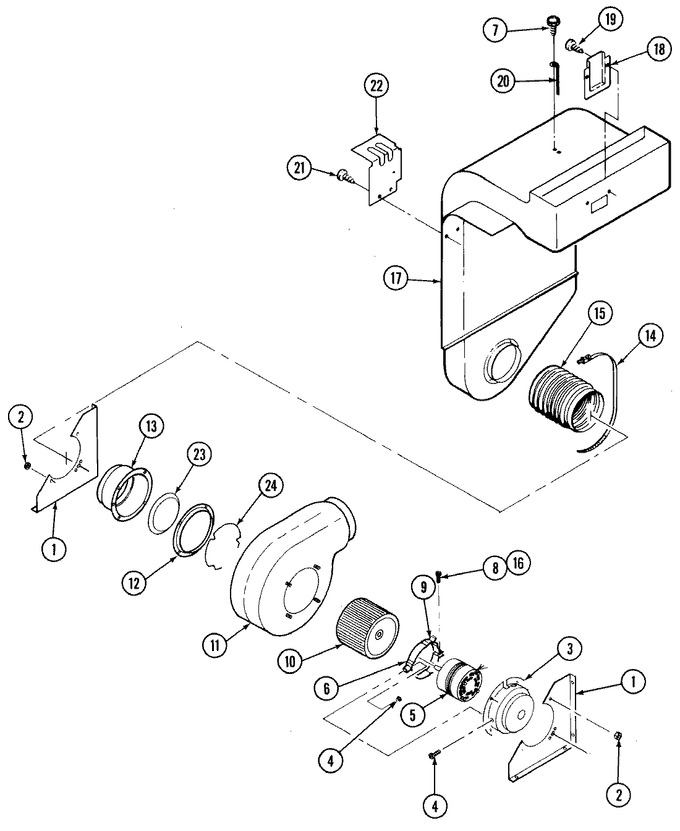

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3801F631-51		Bracket, Mount   (Replaces: Y702294)	1			$ 70.98
2	WPY707702		Locknut   (Replaces: Y707702)	1		Immediately	$ 6.26
3	Y704760		Cover, Motor	1	Appelez-nous	-
4	707407		Screw	1			$ 6.42
5	Y715957		Foam, Urethane	1	Appelez-nous	-
5	Y704759		Motor	1	Appelez-nous	-
6	Y707393		Band, Motor	1	Appelez-nous	-
7	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
8	Y707402		Screw	1	Appelez-nous	-
9	WP71003558		Isolator   (Replaces: Y708926)	1			$ 11.47
10	WPY707985		Wheel, Blower   (Replaces: Y707985)	1		Immediately	$ 145.55
11	712008		Scroll, Blower Assy.	1	Appelez-nous	-
12	Y704758		Ring, Inlet	1	Appelez-nous	-
13	Y702296		Adapter, Restrictor Ring	1	Appelez-nous	-
14	Y702331		Clamp, Hose	1	Appelez-nous	-
15	Y702326		Duct, Flexible	1			$ 77.46
16	707161		Nut	1	Appelez-nous	-
17	712025		Plenum, Upper	1	Appelez-nous	-
18	Y702475		Cover, Vent	1	Appelez-nous	-
19	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
20	Y702656		Stop, Filter	1	Appelez-nous	-
21	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
22	WP71002111		Filter, Grease   (Replaces: Y715290)	1		Immediately	$ 33.49
22	DE81-08871A		Enclosure, Side (right)   (Replaces: 702183)	1			$ 526.73
22	702735		Cord, Receptacle Motor	1	Appelez-nous	-
22	Y702733		Cord, Power (motor)	1	Appelez-nous	-
22	Y702696		Strain, Relief	1	Appelez-nous	-
23	Y704761		Ring, Restrictor	1	Appelez-nous	-
24	Y704762		Retainer	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
