SELECT A DIAGRAM

01 - Access Panel


02 - Blower Motor-blower/plenum


03 - Blower Motor-cooling


04 - Body


05 - Control Panel


06 - Door


07 - Internal Controls


08 - Oven


09 - Top Assembly

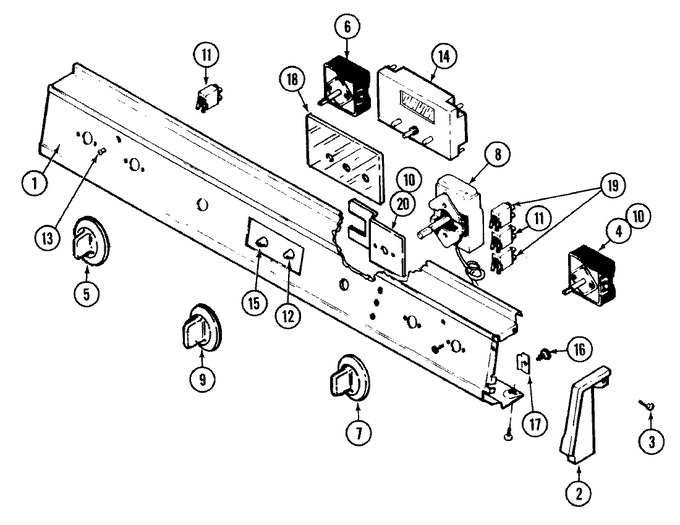

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	705101		Panel, Control	1	Appelez-nous	-
2	702388		Cap, End (lt)	1	Appelez-nous	-
3	Y702387		Cap, End (rt)	1	Appelez-nous	-
4	W11120791		Switch, Infinite   (Replaces: 703650)	1		Immediately	$ 98.55
5	12200034		Knob, Infinite (blk)   (Replaces: Y704613)	1			$ 95.17
6	Y704850		Switch, Selector	1	Appelez-nous	-
7	WPY704841		Knob, Selector   (Replaces: Y04100276)	1			$ 40.37
8	Y703674		Thermostat	1			$ 133.57
9	703886		Knob, Thermostat Cwe601	1	Appelez-nous	-
10	71002058		Screw, 8-32   (Replaces: Y04100363)	1			$ 5.82
11	Y704311		Switch, Oven Light (blk)	1	Appelez-nous	-
11	Y702614		Light, Surface Indicator 120v	1	Appelez-nous	-
12	WP7711P492-60		Knob, Clock (sm/blk)   (Replaces: Y704239)	1			$ 12.13
13	703126		Lens, Pilot (amber)	1	Appelez-nous	-
14	Y04100133		Clock	2	Appelez-nous	-
14	Y703708		Clock	1	Appelez-nous	-
15	WPW10339879		Tie, Cable   (Replaces: 701678)	1			$ 7.11
15	WP7711P492-60		Knob, Clock (blk)   (Replaces: Y703910)	1			$ 12.13
16	Y705393		Screw, Hex	1	Appelez-nous	-
17	702616		Bracket, Retaining	1	Appelez-nous	-
18	04100132		Lens, Timer----na	1	Appelez-nous	-
19	Y704222		Light, Oven Pilot (240v)	1	Appelez-nous	-
20	704916		Harness, Supply	1	Appelez-nous	-
20	703667		Bracket, Clock	1	Appelez-nous	-
20	04100712		Harness, Control	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
