02 - Backguard
03 - Body Parts
04 - Cooktop And Drawer Parts
05 - Door Parts
New Model Search:

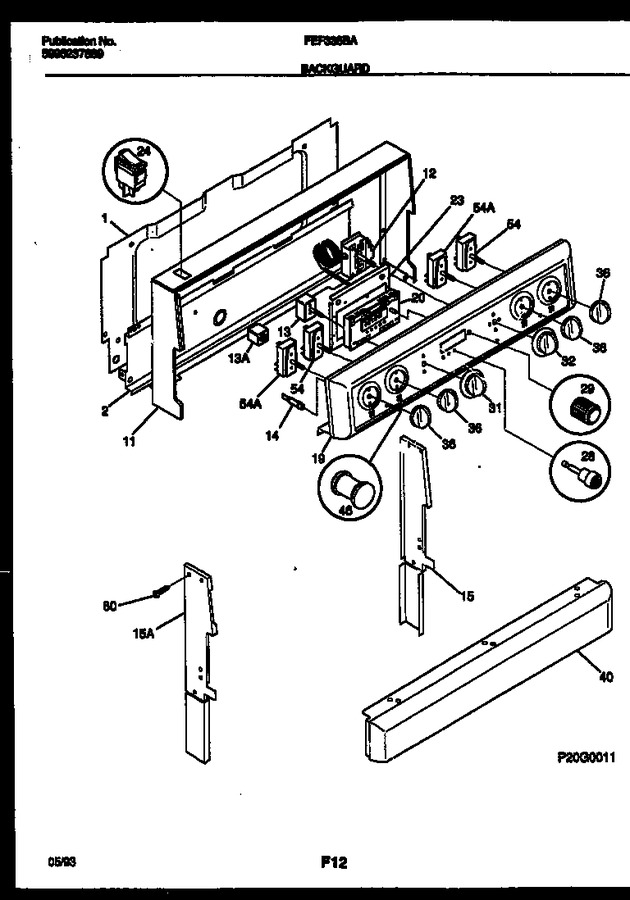

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316015701 | Shield-backguard, Rear Wall |
|
- | |||||
| 2 | 316015905 | Shield-backguard, Inner |
|
- | |||||
| 11 | 316034302 | Trim-wrapper, Black |
|
- | |||||
| 12 | 316032400 | Thermostat, Oven, Non Sc |
|
- | |||||
| 13 | 316032801 | Switch-selector, 4 Pos Nsc |
|
- | |||||
| 14 | 316022502 | Light/lamp, Indicator, 250 V, (3) |
|
- | |||||
| 15 | 316023102 | Support-backguard, Rh |
|
- | |||||
| 19 | 316024406 | Panel-control, Metal |
|
- | |||||
| 20 | 316045500 | Clock/timer, Electronic |
|
- | |||||
| 23 | 316033201 | Bracket-clock Mtg |
|
- | |||||
| 24 | 5304527841 | Switch-light/lamp, Rocker, Black (Replaces: 316005602) |
|
Immediately | $ 11.38 | ||||
| 28 | 3131730 | Button-clock, Black |
|
- | |||||
| 29 | 5303271133 | Knob-clock, Black |
|
- | |||||
| 31 | 316054906 | Knob-selector |
|
- | |||||
| 32 | 316054900 | Knob-thermostat |
|
- | |||||
| 36 | 316025100 | Knob-control, Infinite Sw |
|
- | |||||
| 40 | 316025800 | Panel-manifold |
|
- | |||||
| 46 | 316040201 | Lens-light/lamp, Indicator, Red |
|
- | |||||
| 54 | 5303935086 | Switch-6`` Element (Replaces: 316021500) |
|
Immediately | $ 51.95 | ||||
| 60 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| 13A | 5303291407 | Switch-pulsar, Cycling |
|
- | |||||
| 15A | 316023103 | Support-backguard, Lh |
|
- | |||||
| 54A | 316436001 | Switch-8`` Element (Replaces: 316021501) |
|
Immediately | $ 51.68 |
