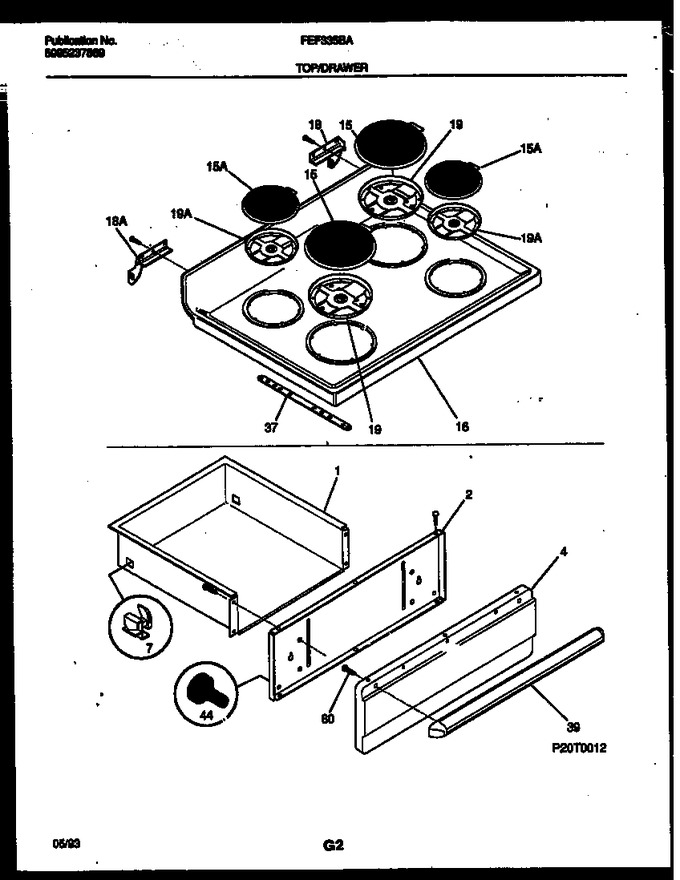

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056202		Panel-drawer,almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316046100		Element-surface, Solid, Large/8 Inch		Appelez-nous	-
16	316042903		Main Top, Almond		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	5308014551		Pan-element Shield, Med 8/inch		Appelez-nous	-
37	5303271888		Strap, Element Mtg		Appelez-nous	-
39	316026100		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
15A	316046300		Element-surface, Solid, Small/6 Inch		Appelez-nous	-
16A	5303271890		Channel, Top Stiffner (non-illustrated)		Appelez-nous	-
18A	5303273063		Hinge-main Top (lh)				$ 48.41
18B	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18C	5303288567		Screw, 8-18 X 3/8, (4) (non-illustrated)		Appelez-nous	-
19A	5303271880		Pan, Element Shield, Sm 6/inch		Appelez-nous	-
37A	5303281584		Screw, Truss Head, 8, 18 X 1/2 (non-illustrated)		Appelez-nous	-
37B	3051196		Nut 6-m Element Mtg (non-illustrated)		Appelez-nous	-
4A	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
