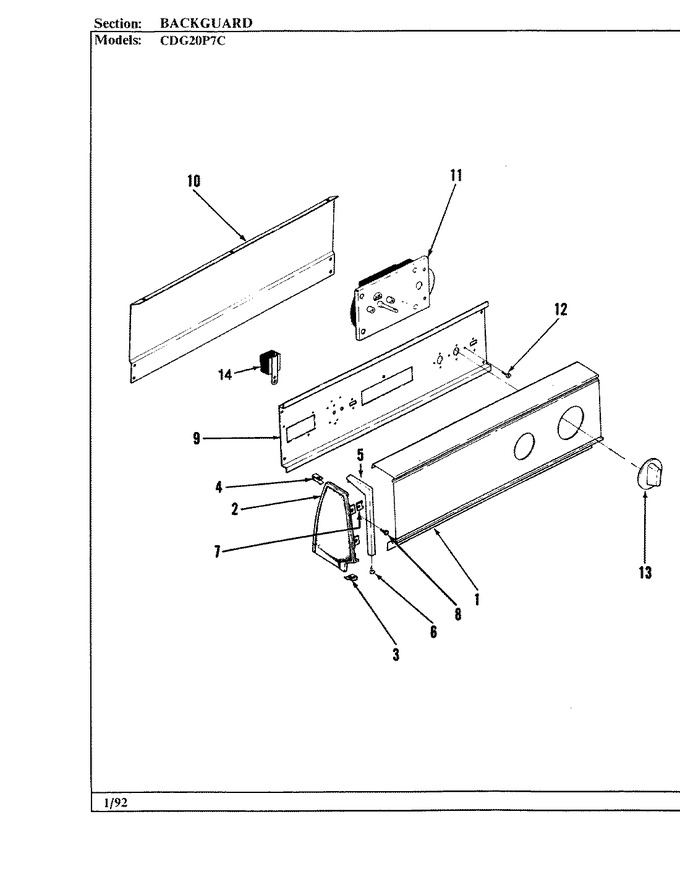

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1925		Control Panel		Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
2	25-7649		Screw		Appelez-nous	-
2	53-2488		Insert, Instruction		Appelez-nous	-
2	35-2487		Cap, End (rt)		Appelez-nous	-
3	25-7691		Screw, End Cap To Top		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
4	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
5	53-0277		Trim, End Cap (rt)		Appelez-nous	-
5	53-0278		Trim, End Cap (lt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-1676		Shield, Control		Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
11	53-1758		Timer	A	Appelez-nous	-
11	63-6752		Timer Motor		Appelez-nous	-
11	53-1303CP		Timer   (Replaces: 53-1303)		Appelez-nous	-
12	WP33002917		Screw   (Replaces: 25-7435)	A		Immediately	$ 6.90
12	25-0205		Screw		Appelez-nous	-
13	53-0653		Knob		Appelez-nous	-
13	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
14	53-1639		Buzzer Assy.		Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
NI	53-1926-1		Manual, Use & Care		Appelez-nous	-
