SELECT A DIAGRAM

01 - Control Panel


02 - Gas Carrying


03 - Motor & Drive

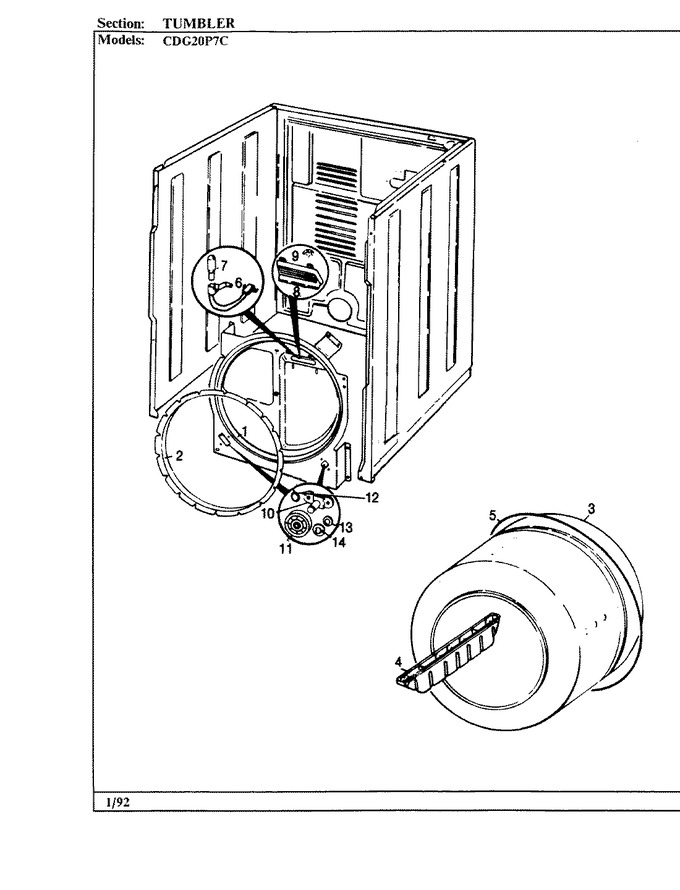

04 - Tumbler


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1703		Bulkhead W/o Cylinder Light Gr		Appelez-nous	-
1	WP681414		Screw   (Replaces: 25-7733)			Immediately	$ 7.07
2	WP31001637		Seal Assy (gray)   (Replaces: 53-0282)				$ 30.62
3	53-0178		Tumbler Assy.		Appelez-nous	-
4	WP3196164		Screw   (Replaces: 25-7759)			Immediately	$ 7.82
4	53-0117		Baffle, Gray		Appelez-nous	-
5	341241		Belt, Cylinder   (Replaces: 53-1589)			Immediately	$ 16.34
6	W10124350		Not Required Part Or See Note		Appelez-nous	-
7	W10124350		Not Required Part Or See Note		Appelez-nous	-
8	W10124350		Not Required Part Or See Note		Appelez-nous	-
9	LA-1006		Glide Kit, Tumbler			Immediately	$ 25.12
9	W10124350		Not Required Part Or See Note		Appelez-nous	-
10	WP3351614		Screw   (Replaces: 25-7101)			Immediately	$ 6.26
10	WP53-0197		Support Assy.-cylinder Rear   (Replaces: 53-0197)				$ 81.21
11	53-0642		Cyl Roller		Appelez-nous	-
12	25-7813		Spacer		Appelez-nous	-
13	25-7814		Washer				$ 5.33
14	WP25-7854		Ring, Retaining   (Replaces: 25-7854)				$ 10.68
14	LA-1008		Rr Roller Kit				$ 66.73
