SELECT A DIAGRAM
01 - Base (gas)
02 - Cabinet
03 - Control Panel & Top
04 - Supplemental Information
05 - Tumbler
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

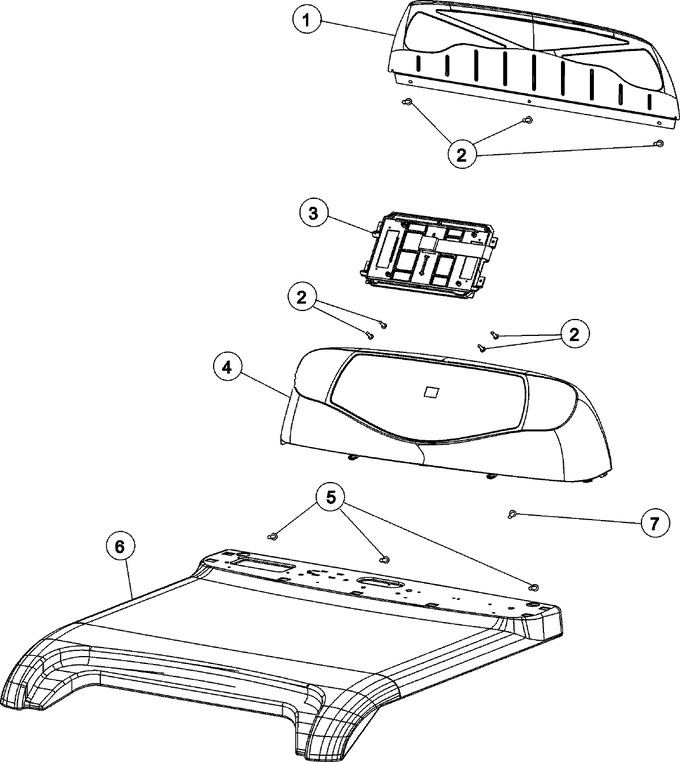

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003581 | Back, Console Panel | 10 |
|
- | ||||
| 2 | 25001021 | Screw, No.8-16 Truss Hd | 10 |
|
- | ||||
| 3 | 33002959 | Control Board Assembly | 10 |
|
- | ||||
| 4 | 33003009 | Console As Pack | 10 |
|
- | ||||
| 5 | WP489128 | Screw (Replaces: 22002925) | 10 |
|
$ 9.79 | ||||
| 6 | 33002627 | Cover, Top (wht-as Pk) | 10 |
|
- | ||||
| 7 | WP489128 | Screw, Serrated Washer Head Hx (Replaces: 22003817) | 10 |
|
$ 9.79 |
