SELECT A DIAGRAM

01 - Base (gas)


02 - Cabinet


03 - Control Panel & Top

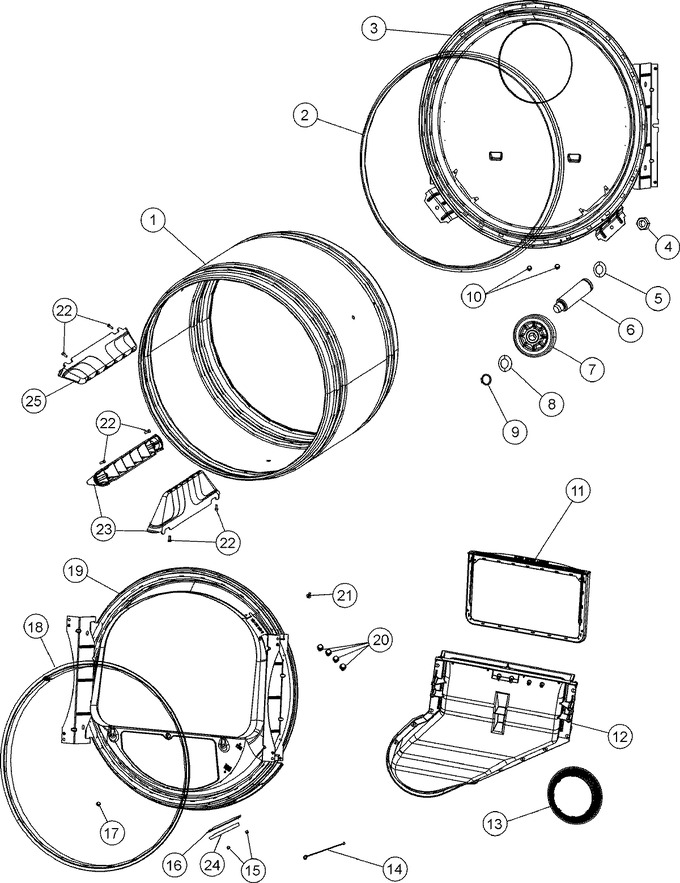

04 - Supplemental Information


05 - Tumbler


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33001794		Tumbler	10	Appelez-nous	-
2	WP33001807		Seal, Tumbler   (Replaces: 33001807)	10		Immediately	$ 21.39
3	33003037		Tumbler Back & Seal	17	Appelez-nous	-
3	33002779		Tumbler Back & Seal As-pack	10	Appelez-nous	-
4	WP33001443		Nut, Hex (roller Shaft)   (Replaces: 33001443)	10			$ 7.15
5	WP312535		Washer, Roller Shaft   (Replaces: 312535)	10		Immediately	$ 10.25
6	Y312948		Shaft, Tumbler Roller	10	Appelez-nous	-
7	12001541		Drum Roller/washer Assy.	10		Immediately	$ 27.92
8	WP312535		Washer, Roller Shaft   (Replaces: 312535)	10		Immediately	$ 10.25
9	WP9703438		Ring, Retaining   (Replaces: 410233)	10		Immediately	$ 3.81
10	WP90767		Screw   (Replaces: 211294)	10		Immediately	$ 7.04
11	WP33001808		Filter, Lint   (Replaces: 33001808)	10		Immediately	$ 54.12
12	33001799		Outlet Duct Assembly	10			$ 81.40
13	33002560		Seal, Blower	10	Appelez-nous	-
14	Y303711		Sensor Ground Wire	10	Appelez-nous	-
15	WP210720		Rivet   (Replaces: 210720)	10			$ 12.14
16	306508		Tumbler Bearing Kit	10		Immediately	$ 20.77
17	312311		Screw----na	10	Appelez-nous	-
18	WP33001807		Seal, Tumbler   (Replaces: 33001807)	10		Immediately	$ 21.39
19	33001868		Front, Tumbler Front W/sensor	10	Appelez-nous	-
20	WP33002917		Screw (hex Head)   (Replaces: 33001855)	10		Immediately	$ 6.90
21	33001871		Screw	10	Appelez-nous	-
22	33001788		Screw, Baffle	10	Appelez-nous	-
23	WP33002032		Baffle (tall)   (Replaces: 33002032)	10		Immediately	$ 37.95
24	306508		Bearing Pad F/tumbler Front   (Replaces: 312940)	10		Immediately	$ 20.77
25	WP33001755		Baffle (short)   (Replaces: 33001755)	10		Immediately	$ 30.85

    View Diagram in Separate Window       Print Part List
