SELECT A DIAGRAM
01 - Cover
03 - Backguard

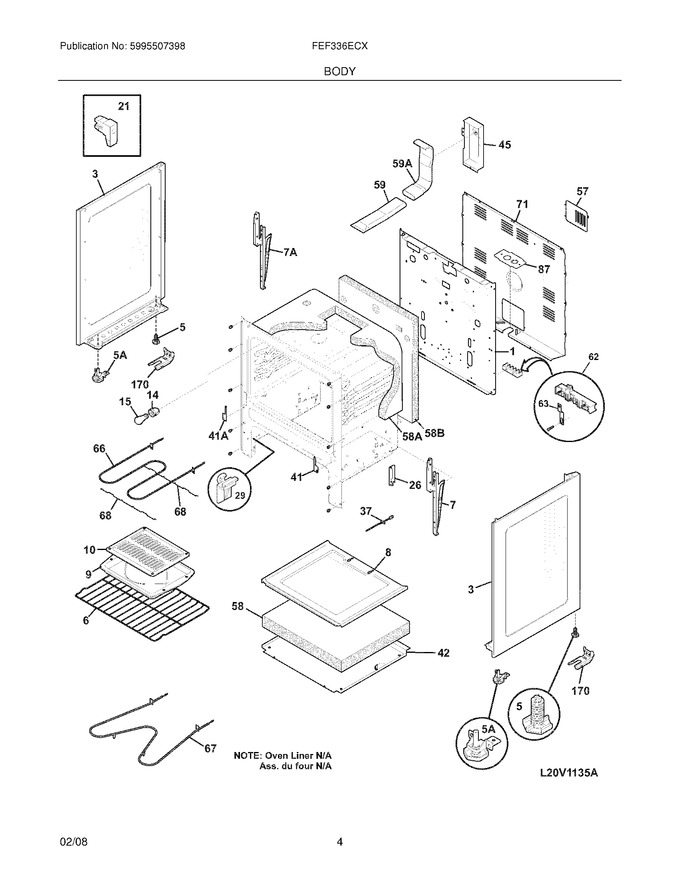

05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316201300 | Back,main |
|
- | |||||
| 3 | 316400144 | Panel,bodyside ,black ,rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 5 | 316272900 | Screw,leveling ,plastic ,rear ,(2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316067902 | Rack,oven ,(2) |
|
Immediately | $ 103.10 | ||||
| 7 | 316216504 | Hinge,oven Door ,rh |
|
$ 98.33 | |||||
| 8 | 316495903 | Panel,,oven Bottom |
|
$ 108.68 | |||||
| 9 | 316081900 | Pan,broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert,broiler Panoptional Accessory |
|
$ 68.85 | |||||
| 14 | 316116400 | Receptacle,oven Light |
|
Immediately | $ 56.10 | ||||
| 15 | 316538904 | Lamp,oven Light (Replaces: 316538901) |
|
Immediately | $ 20.48 | ||||
| 21 | 316408000 | Clip,bodyside |
|
$ 18.20 | |||||
| 26 | 316206300 | Support,chassis ,(2) |
|
$ 19.72 | |||||
| 29 | 3051162 | Glide-drawer, Front |
|
Immediately | $ 8.22 | ||||
| 41 | 316233400 | Cover,hinge Cutout ,rh |
|
$ 67.99 | |||||
| 42 | 316206200 | Shield,wool ,lower |
|
- | |||||
| 45 | 316234100 | Shield,wire ,vent Tube |
|
$ 70.16 | |||||
| 57 | 316457801 | Cover,access |
|
$ 12.89 | |||||
| 58 | 3200847 | Insulation, Oven Bottom |
|
- | |||||
| 59 | 316208201 | Tube,oven Vent ,lower |
|
$ 77.26 | |||||
| 62 | 5303935271 | Terminal Block Kit |
|
$ 73.56 | |||||
| 63 | 316542600 | Plate,grounding Strap |
|
- | |||||
| 67 | 316075103 | Element-bake |
|
Immediately | $ 42.36 | ||||
| 68 | 316203400 | Support,broil Element |
|
$ 70.88 | |||||
| 71 | 316422304 | Shield,rear Wall |
|
$ 115.53 | |||||
| 87 | 316081200 | Bracket,cable Mtg |
|
- | |||||
| 170 | 316112005 | Anti Tip Kit,assembly (Replaces: 316112003) |
|
Immediately | $ 18.91 | ||||
| 170 | 316112005 | Bracket,anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| 170 | 316116000 | Screw,concrete ,1.75`` ,anti-tip Brkt |
|
$ 12.89 | |||||
| 170 | 316112500 | Template,anti-tip |
|
$ 3.55 | |||||
| 3A | 316400145 | Panel,bodyside ,black ,lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 41A | 316233500 | Cover-hinge,cutout ,lh |
|
$ 16.96 | |||||
| 58A | 316047707 | Insulation, 1`` ,oven Wrapper |
|
$ 150.92 | |||||
| 58B | 316054202 | Insulation, 1`` ,oven Back |
|
$ 76.59 | |||||
| 59A | 316208304 | Tube,oven Vent ,upper |
|
$ 80.09 | |||||
| 5A | 5304509869 | Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg (Replaces: 316498900) |
|
Immediately | $ 15.08 | ||||
| 7A | 316566205 | Hinge,oven Door ,lh (Replaces: 316216505) |
|
$ 97.07 | |||||
| F37 | 316233903 | Probe-oven Temp (Replaces: 316233900) |
|
Immediately | $ 57.29 | ||||
| F66 | 316203200 | Element-broil |
|
Immediately | $ 164.45 | ||||
| FNI | 316253152 | Wiring Harness,main |
|
- | |||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 10.02 | |||||
| NI | 316210800 | Plug,button |
|
$ 10.63 | |||||
| NI | 3203550 | Plug,button ,oven Bottom |
|
Immediately | $ 15.22 | ||||
| NI | 316427400 | Plate,weight ,(4) |
|
- | |||||
| NI | 5303321321 | Paint,touch-up,black |
|
Immediately | $ 21.97 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5303285179 | Screw,wafer Head `8-32t X 0.500 ,black |
|
$ 13.46 | |||||
| NI | 316248900 | Spacer,shield ,rear Wall |
|
- | |||||
| NI | 5308014215 | Screw`6-20 X 0.312 |
|
$ 2.28 | |||||
| NI | 316205500 | Nut,hex Flange ,3/8 10-32 |
|
$ 11.34 |
