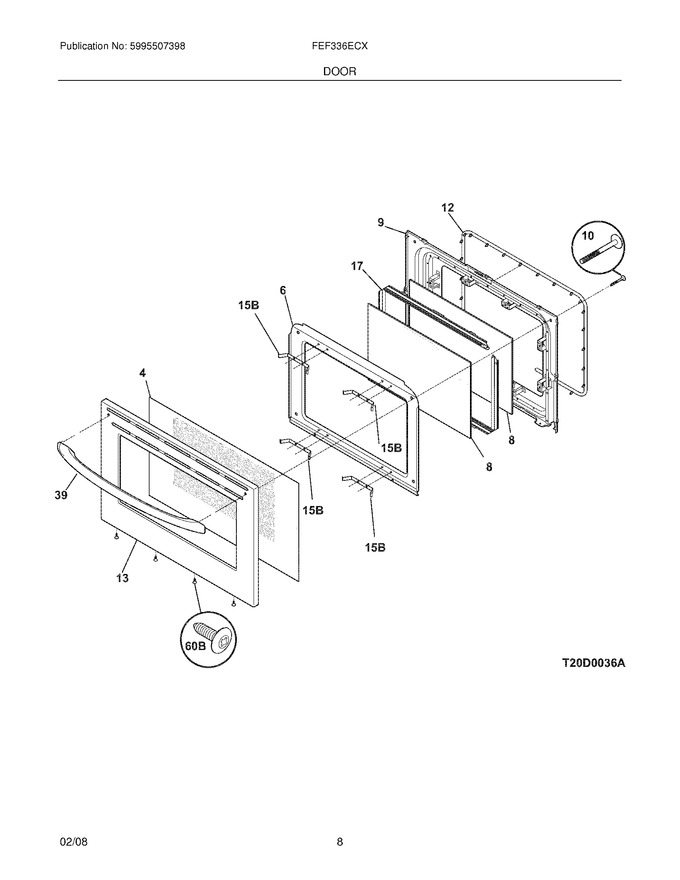

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240000		Glass,oven Door ,black ,outer				$ 273.62
6	316222711		Shield,wool ,black ,oven Door				$ 47.90
8	5304503232		Glass,oven Door ,clear ,heat Barrier   (Replaces: 316237100)				$ 116.95
9	316230623		Liner,oven Door				$ 165.90
10	316433303		Screw,10-14 X 1.820`` ,handle Mtg.			Immediately	$ 31.17
12	316239700		Seal,oven Door			Immediately	$ 152.43
13	316209406		Panel,oven Door ,stainless ,outer ,w/nameplate				$ 281.35
17	316117701		Spacer,door Glass ,(2)				$ 53.66
39	316270200		Handle,door ,black				$ 136.40
15B	316085501		Bracket,glass Support				$ 41.74
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433600		Label,anti-tip		Appelez-nous	-
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
