01 - Cabinet
02 - Control Panel
03 - Door
04 - Door (series 11)
05 - Gas Carrying
06 - Motor & Drive
07 - Tumbler
08 - Tumbler (series 12)
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

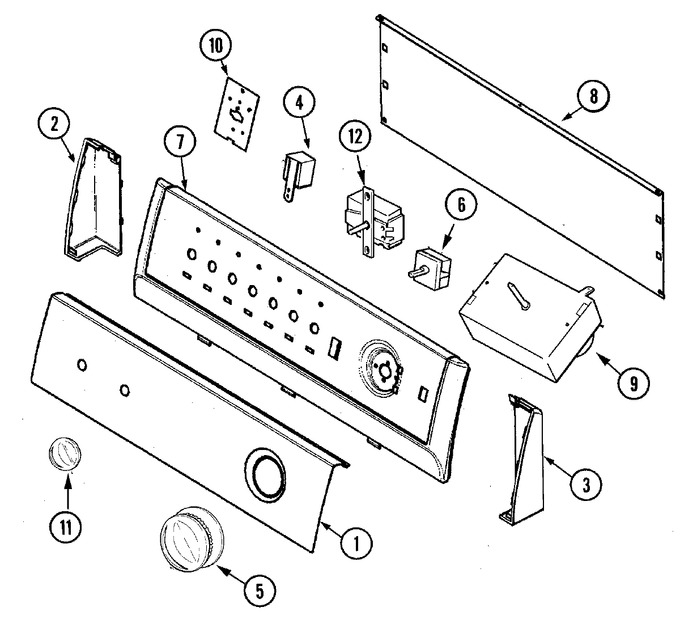

| 1 | 31001521 | Panel, Control (bsq) | 10 |
|
- | ||||
| 2 | 21001769 | Endcap, Panel (lt-bsq) | 10 |
|
- | ||||
| 3 | 21001768 | Endcap, Panel (rt-bsq) | 10 |
|
- | ||||
| 4 | 53-1639 | Buzzer Assy. | 10 |
|
- | ||||
| 5 | 31001475 | Knob/skirt, Timer (bsq) | 10 |
|
- | ||||
| 6 | 31001190 | Switch, Two Position Rotary | 10 |
|
$ 52.56 | ||||
| 7 | 21001767 | Frame (bsq) | 10 |
|
- | ||||
| 8 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 9 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 9 | WP31001513 | Timer (Replaces: 53-1815) | 10 |
|
$ 340.49 | ||||
| 10 | 21001517 | Shield, Control (1 Pos.) | 10 |
|
$ 4.83 | ||||
| 11 | 21001772 | Knob, Selector (bsq) | 10 |
|
- | ||||
| 12 | 31001243 | Switch, Selector | 10 |
|
- | ||||
| NI | 31001491 | Harness, Wire | 10 |
|
- | ||||
| NI | 21001812 | Manual, Use & Care (french) | 10 |
|
- | ||||
| NI | 21001811 | Manual, Use & Care | 10 |
|
- |
