01 - Cabinet
02 - Control Panel
03 - Door
04 - Door (series 11)
05 - Gas Carrying
06 - Motor & Drive
07 - Tumbler
08 - Tumbler (series 12)
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:

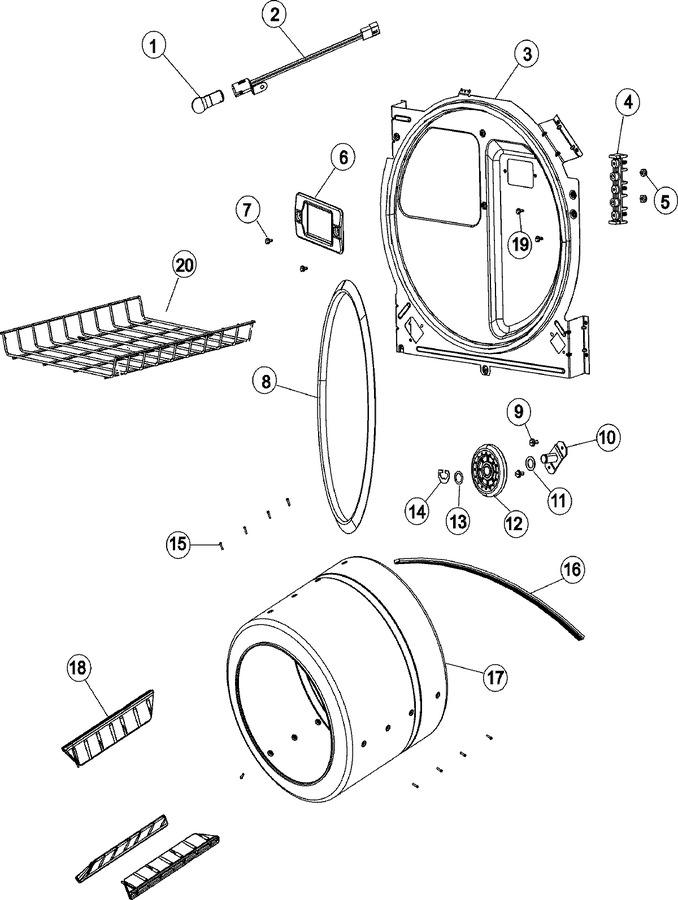

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31001575 | Bulb, Cylinder Light | 12 |
|
$ 5.83 | ||||
| 2 | 31001579 | Receptacle Asm, Clyinder Light | 12 |
|
- | ||||
| 3 | 31001581 | Bulkhead With Seal | 12 |
|
- | ||||
| 6 | 31001585 | Lens, Cylinder Light | 12 |
|
- | ||||
| 7 | 31001580 | Screw, 6-32 Hex Washer Head | 12 |
|
- | ||||
| 8 | WP31001747 | Seal Assembly (rear) (Replaces: 31001548) | 12 |
|
$ 30.87 | ||||
| 9 | WP3351614 | Screw (Replaces: 25-7101) | 12 |
|
Immediately | $ 6.26 | |||
| 10 | WP53-0197 | Support Assy.-cylinder Rear (Replaces: 53-0197) | 12 |
|
$ 81.21 | ||||
| 11 | 31001583 | Spacer, Roller | 12 |
|
$ 5.27 | ||||
| 12 | 31001096 | Roller (rear) | 12 |
|
$ 50.12 | ||||
| 13 | 25-7814 | Washer | 12 |
|
$ 5.33 | ||||
| 14 | WP25-7854 | Ring, Retaining (Replaces: 25-7854) | 12 |
|
$ 10.68 | ||||
| 15 | WP3196164 | Screw (Replaces: 25-7759) | 12 |
|
Immediately | $ 7.82 | |||
| 16 | 341241 | Belt, Cylinder (Replaces: 31531589) | 12 |
|
Immediately | $ 16.34 | |||
| 17 | 53-1250 | Cylinder (w/baffle) | 12 |
|
- | ||||
| 18 | 53-1249 | Baffle, White | 12 |
|
- | ||||
| 20 | 21001495 | Rack, Drying | 12 |
|
- |
