SELECT A DIAGRAM

02 - Backguard


03 - Body Parts


04 - Cooktop And Drawer Parts


05 - Door Parts

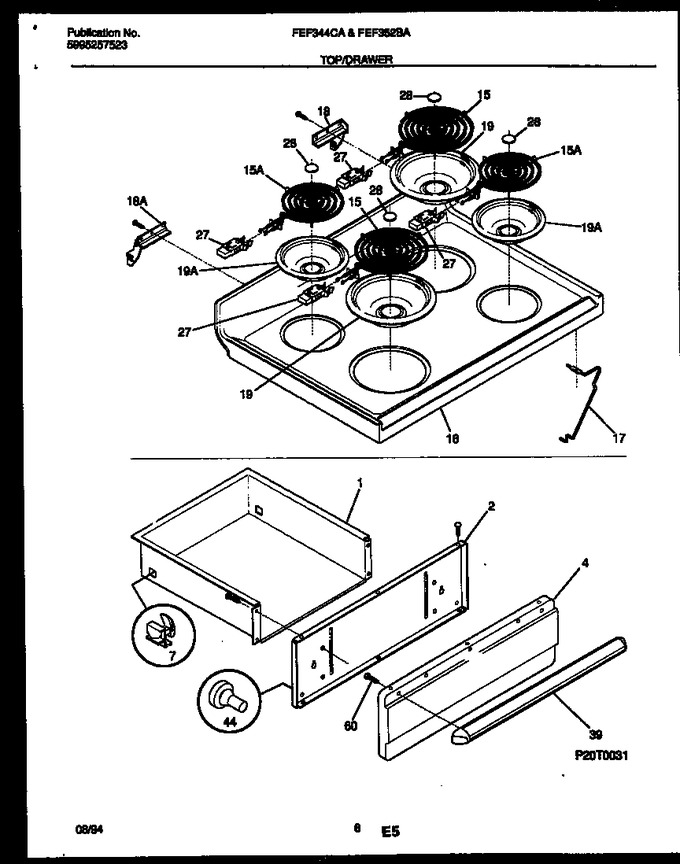

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303012223)			Immediately	$ 44.39
16	316020908		Main Top, Almond		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	A316222301		Pan-surface Element, Large/8 Inch   (Replaces: 5303935053)			Immediately	$ 12.53
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
39	316026100		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*10840	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
15A	318372211		Element-surface, Small/6 Inch   (Replaces: 08067762)			Immediately	$ 45.14
18A	5303273063		Hinge-main Top (lh)				$ 48.41
19A	A316222201		Pan-surface Element, Small/6 Inch   (Replaces: 5303935055)			Immediately	$ 14.64
28A	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
4A	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
