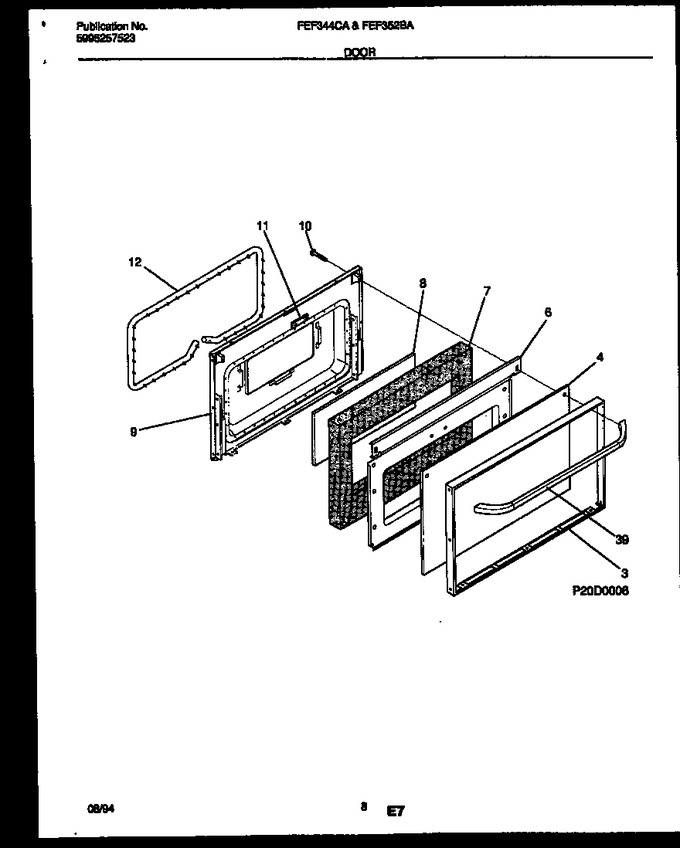

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 316067802 | Trim-oven Door |
|
- | |||||
| 4 | 3051152 | Glass-oven Door, Black, Outer |
|
- | |||||
| 6 | 5303210608 | Shield-insulation, Black |
|
- | |||||
| 7 | 5303210607 | Insulation, Oven Door |
|
- | |||||
| 8 | 316050303 | Glass-oven Door, Inner |
|
- | |||||
| 9 | 316066603 | Liner-oven Door |
|
- | |||||
| 10 | 316001002 | Screw-oven Door, Washer Head, 10-24 X 1.81 |
|
$ 14.89 | |||||
| 11 | 5303015373 | Cover-door Liner |
|
- | |||||
| 12 | 5303202011 | Seal-oven Door, Non Self-clean |
|
$ 166.84 | |||||
| 39 | 5304529996 | Handle-door, Black, Oven (Replaces: 316060200) |
|
$ 156.11 | |||||
| *10840 | 5303212671 | Screw, Cr Pan Hd Sems, 8, 32(bp) X 1 |
|
- | |||||
| *10840 | 316071600 | Plate Warning/caution |
|
- | |||||
| *10840 | 5303269859 | Screw 8-18 X 1/2 Black |
|
- |
