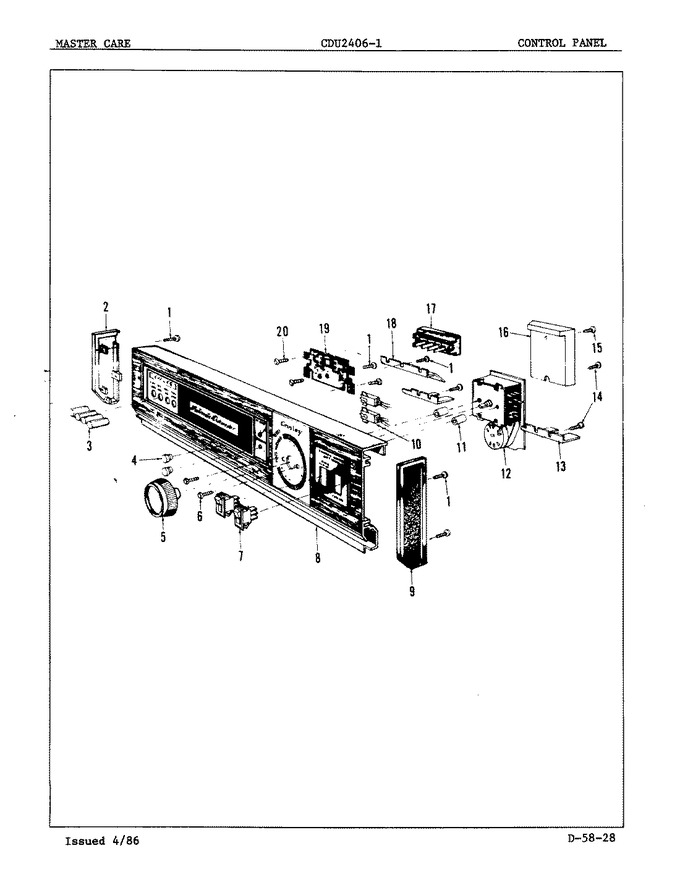

SELECT A DIAGRAM

01 - Control Panel


02 - Detergent Cup


03 - Door & Access Panel


04 - Frame


05 - Pump & Motor


06 - Racks


07 - Tub (inner)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806943		Screw		Appelez-nous	-
2	806407		Lh End Cap		Appelez-nous	-
3	807091		Push Button		Appelez-nous	-
4	805664		Red Lens		Appelez-nous	-
5	807094		Timer Knob		Appelez-nous	-
6	805324		Screw		Appelez-nous	-
7	807665		Switch		Appelez-nous	-
8	808172		Control Panel		Appelez-nous	-
9	806406		Rh End Cap		Appelez-nous	-
10	805866		Light Asm		Appelez-nous	-
11	805323		Spacer		Appelez-nous	-
12	808128		Timer		Appelez-nous	-
13	806912		Btm Door Trim		Appelez-nous	-
14	W11233072		Screw   (Replaces: 803416)			Immediately	$ 12.62
15	806894		Screw		Appelez-nous	-
16	807425		Splash Pan		Appelez-nous	-
17	808171		Switch		Appelez-nous	-
18	807221		Switch Guard		Appelez-nous	-
19	806594		Switch Bracket		Appelez-nous	-
20	807141		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
