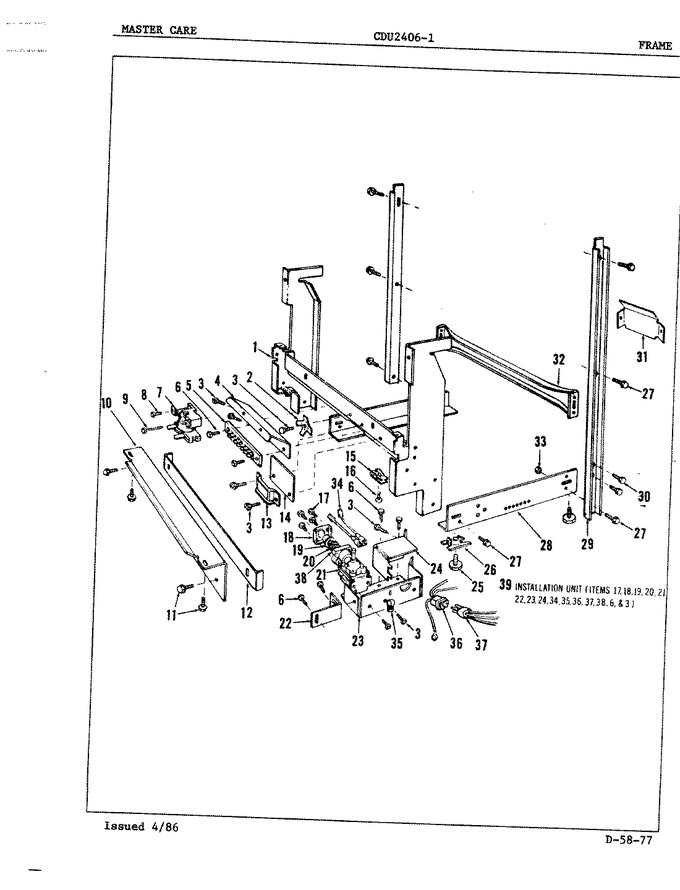

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807848		Hinge		Appelez-nous	-
2	807213		Ground Terminal		Appelez-nous	-
3	806830		Screw		Appelez-nous	-
4	807849		Bracket		Appelez-nous	-
5	COMM PART		Terminal Block   (Replaces: 807486)		Appelez-nous	-
6	807501		Screw		Appelez-nous	-
7	806121		Sub 805255		Appelez-nous	-
8	WP488234		Screw   (Replaces: 806593)				$ 6.07
9	804672		Screw		Appelez-nous	-
10	807850		Toe Plate		Appelez-nous	-
11	807001		Screw		Appelez-nous	-
12	806295		Toe Plate		Appelez-nous	-
13	806723		Clamp		Appelez-nous	-
14	COMM PART		Wire Shield   (Replaces: 808013)		Appelez-nous	-
15	808170		Speednut		Appelez-nous	-
16	WP12990527		Screw   (Replaces: 807784)			Immediately	$ 7.15
17	805286		Screws		Appelez-nous	-
18	808336		Fitting Retainr		Appelez-nous	-
19	808337		Fitting		Appelez-nous	-
20	807609		Flow Washer		Appelez-nous	-
21	COMM PART		Inlet Valve   (Replaces: 808338)		Appelez-nous	-
22	808339		Clip		Appelez-nous	-
23	808340		Mtg Bracket		Appelez-nous	-
24	808341		Junc Box Cover		Appelez-nous	-
25	807672		Leveler		Appelez-nous	-
26	807671		Teenut		Appelez-nous	-
27	806889		Screw		Appelez-nous	-
28	807851		Side Channel		Appelez-nous	-
29	806290		Channel		Appelez-nous	-
30	807950		Screw		Appelez-nous	-
31	808342		Hose Support		Appelez-nous	-
32	807852		Rear Brace		Appelez-nous	-
33	M0282005		Nut   (Replaces: 804619)				$ 7.07
34	808354		Connector		Appelez-nous	-
35	W10833902		Clamp   (Replaces: 805584)				$ 9.89
36	808358		Receptacle		Appelez-nous	-
37	808356		Connector		Appelez-nous	-
38	807609		Flow Washer		Appelez-nous	-
39	808360		Valve Kit		Appelez-nous	-
