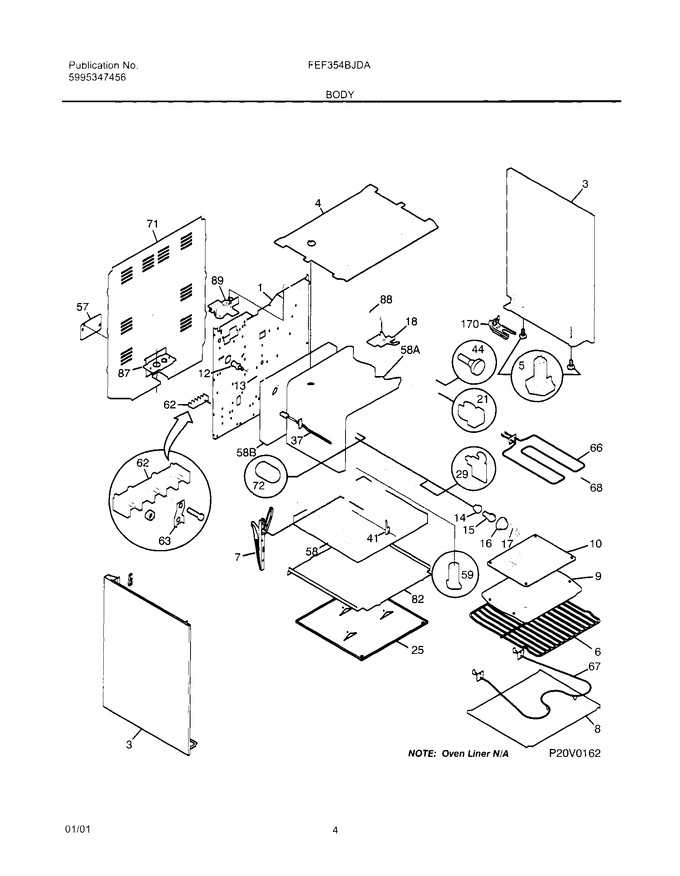

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080803		Panel-main Back,galv Steel ,short		Appelez-nous	-
3	316081037		Panel,bodyside ,almond ,lh		Appelez-nous	-
3	316081036		Panel,bodyside ,almond ,rh		Appelez-nous	-
4	5303271756		Burner Box		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
12	316027701		Switch-oven Light		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	316116400		Socket-light/lamp,oven			Immediately	$ 56.10
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	316036300		Latch-door		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
25	3200848		Shield,heat ,lower		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
37	5304497424		Probe-oven Temp   (Replaces: 316134900)			Immediately	$ 38.32
41	3131570		Cover Hinge Cutout				$ 7.35
57	316081100		Cover,access		Appelez-nous	-
58	316054200		Insulation, 2`` ,oven Back		Appelez-nous	-
58	316054202		Insulation, 1`` ,oven Back				$ 76.59
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
58	316047707		Insulation, 1`` ,oven Wrapper				$ 150.92
58	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
59	316073600		Tube-oven Vent		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Element-broil,2950 W				$ 202.71
67	316075103		Element-bake,67			Immediately	$ 42.36
68	316075300		Support-element, Broil		Appelez-nous	-
71	316015804		Shield-rear Wall,galv Steel		Appelez-nous	-
72	5303285692		Cover-rod End,lt Switch Rod		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
89	316028101		Motor-latch/lock		Appelez-nous	-
170	316112500		Template, Anti-tip Bracket				$ 3.55
170	316116000		Screw`concrete Tpg `1.75 Inch ,anti-tip Brkt				$ 12.89
170	316112005		Kit-anti-tip Bracket (complete W/template & Screw)   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303051099		Nut, Hex, 10-32		Appelez-nous	-
NI	5308014215		Screw				$ 2.28
NI	316001386		Wiring Harness,main		Appelez-nous	-
