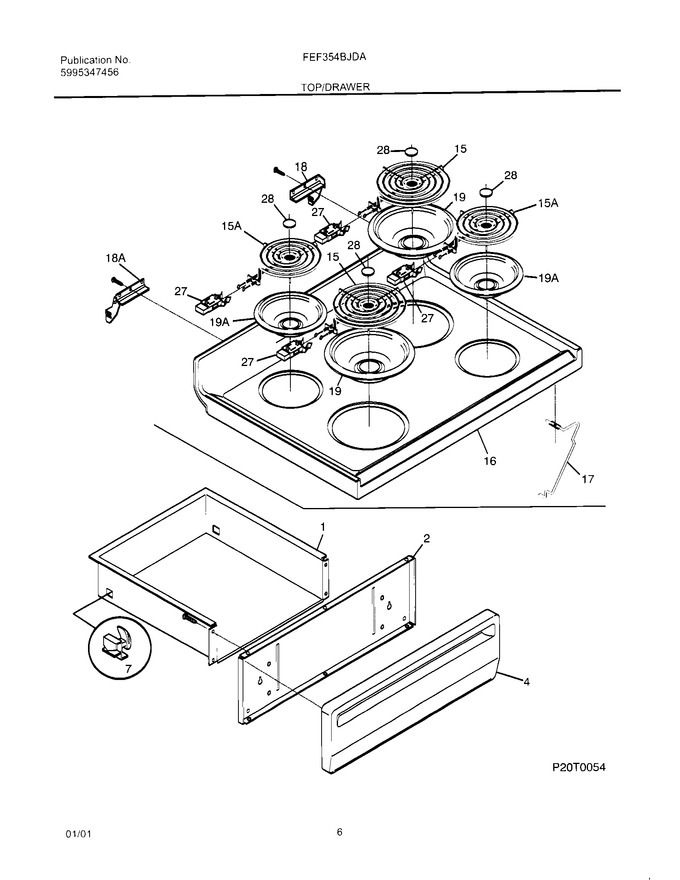

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	5303288582		Shield-drawer,liner ,galv Steel ,front Panel		Appelez-nous	-
2	3131975		Shield-drawer,liner ,aluminum ,front Panel		Appelez-nous	-
4	316084406		Panel-drawer Front,almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318372211		Element-surface,small-6``   (Replaces: 08067762)			Immediately	$ 45.14
15	316442301		Element-surface,large-8``   (Replaces: 5303012223)			Immediately	$ 44.39
16	316020908		Main Top, Almond		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
19	A316222201		Pan-element Sm Blk Por W/cl Hl,19a   (Replaces: 318067041)			Immediately	$ 14.64
19	A316222301		Pan-element Lg Blk Por W/cl Hl,19   (Replaces: 318067051)			Immediately	$ 12.53
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
NI	316001725		Wiring Harness,surface Element		Appelez-nous	-
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	08067785		Screw,hex Washer Head, 8-18(ab) X 1/2		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316058601		Clip-surface Element, (4)		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	5308014215		Screw				$ 2.28
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
