SELECT A DIAGRAM

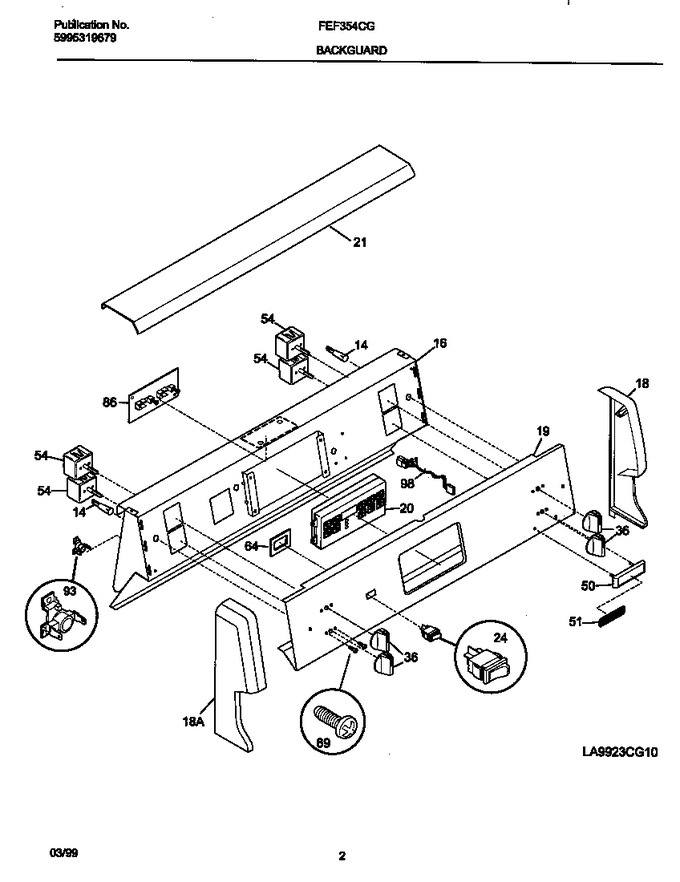

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	318044604		Light-indicator,red		Appelez-nous	-
16	318117423		Plate,instrument Mtg		Appelez-nous	-
18	318118301		End Cap,white ,lh		Appelez-nous	-
18	318118300		End Cap,white ,rh		Appelez-nous	-
19	318117149		Panel-control,white		Appelez-nous	-
20	318013010		Clock/timer,electronic ,white		Appelez-nous	-
21	318118000		Trim-canopy/shield,white		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
36	318034801		Knob-control,white ,(4)		Appelez-nous	-
50	318146600		Nameplate,white				$ 8.82
51	318075703		Insert-nameplate Frigidaire		Appelez-nous	-
54	318120500		Switch-surface Unit				$ 186.80
64	318112200		Mtg Rocker Switch		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
86	318111201		Plate-connecting		Appelez-nous	-
93	318003605		Switch-thermal   (Replaces: 3202388)				$ 178.61
98	318092405		Wiring Harness		Appelez-nous	-
*90760	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*90761	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*90762	5303310510		Screw <10-24 X 5/8 >				$ 14.18
*90763	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*90764	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*90765	154079601		Nut   (Replaces: 3201885)				$ 0.41
*90766	5303308449		Fastener		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
