SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

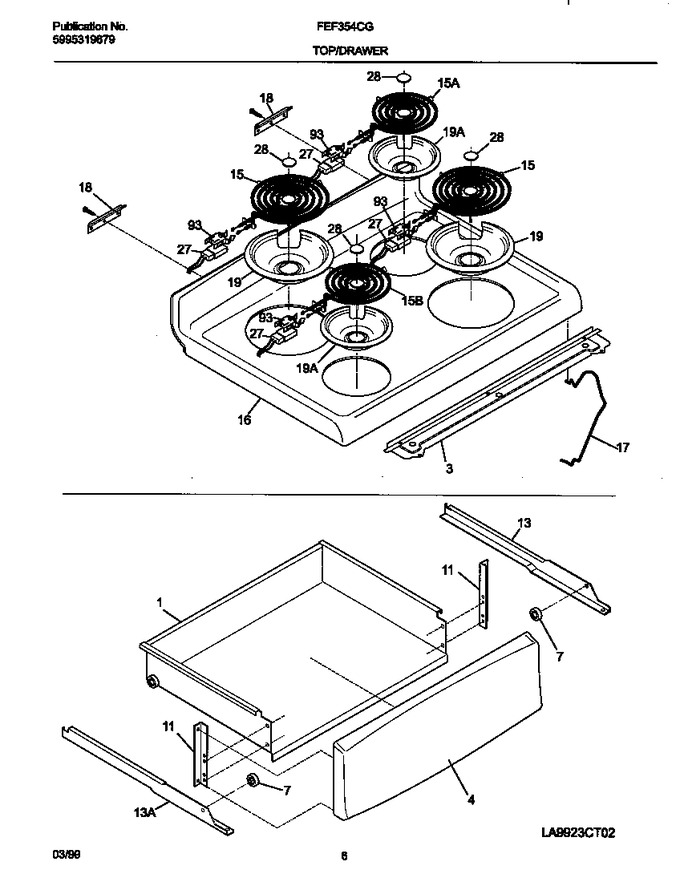

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 318107103)			Immediately	$ 143.39
3	318144301		Support-main Top		Appelez-nous	-
4	318044301		Panel-drawer,white		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318107500		Bracket-support,drawer ,(2)				$ 21.85
13	318018101		Channel-drawer,lh				$ 63.11
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
15	316439802		Element-surface,small ,1100w   (Replaces: 5303324485)			Immediately	$ 192.78
15	PS12-4BK		Element-surface, Small, 1500w   (Replaces: 5303309000)			Immediately	$ 35.96
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303309001)			Immediately	$ 44.39
16	318065702		Main Top,white		Appelez-nous	-
17	318119100		Rod-maintop Support,(2)				$ 6.67
18	318074400		Hinge-main Top,(2)		Appelez-nous	-
19	318067201		Pan-burner,large		Appelez-nous	-
19	318067200		Pan-burner,small				$ 12.60
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303309002		Medallion, Surface Element		Appelez-nous	-
93	318122501		Bracket-terminal Block		Appelez-nous	-
*90774	154079601		Nut   (Replaces: 3201885)				$ 0.41
*90775	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
