01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

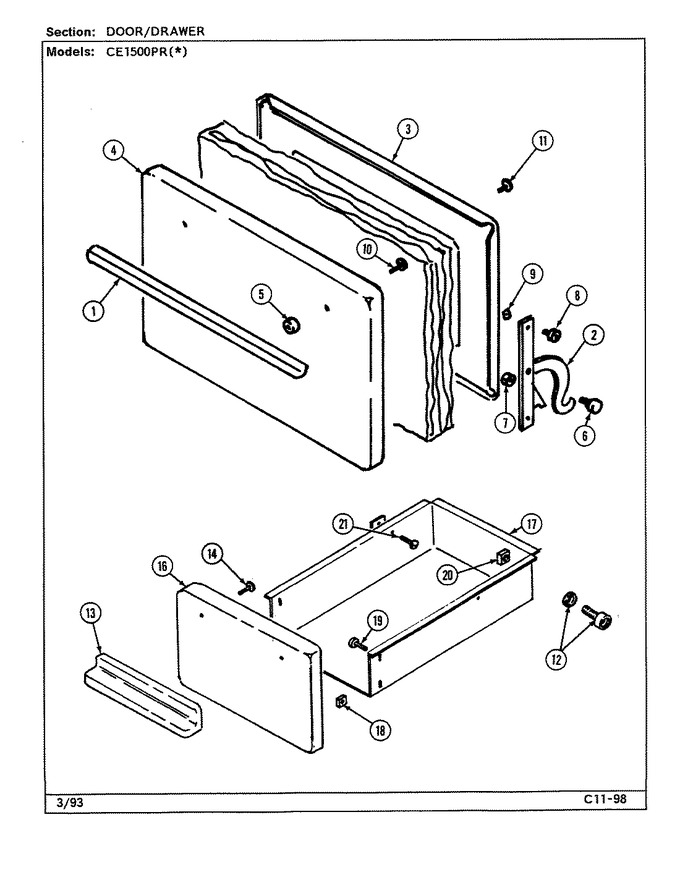

| 1 | 7701P029-60 | Handle, Door (chr) | 01 |
|
- | ||||
| 2 | 3418A047-34 | Hinge, Door (rt) | 01 |
|
- | ||||
| 2 | 3418A046-34 | Hinge, Door (lt) | 01 |
|
- | ||||
| 3 | 2402W102-19 | Lining, Door | 01 |
|
- | ||||
| 4 | 2401W059-71 | Panel, Oven Door (wht) | 01 |
|
- | ||||
| 5 | 8010P029-60 | Spacer, Door Handle | 01 |
|
- | ||||
| 6 | 7118P009-60 | Bolt, Shoulder | 01 |
|
- | ||||
| 7 | W10080180 | Nut Lock (Replaces: 7103P072-60) | 01 |
|
$ 12.13 | ||||
| 8 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 9 | W10080180 | Nut (Replaces: 7103P034-60) | 01 |
|
$ 12.13 | ||||
| 10 | 7101P248-60 | Screw, Handle | 01 |
|
- | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 12 | 8014P009-60 | Bearing, Broiler Rol | 01 |
|
- | ||||
| 13 | 7701P049-60 | Handle Door | 01 |
|
- | ||||
| 14 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 01 |
|
$ 5.82 | ||||
| 16 | 2403W017-71 | Panel, Drawer (wht) | 01 |
|
- | ||||
| 17 | 3405W010-80 | Drawer, Utility | 01 |
|
- | ||||
| 18 | M0282009 | Nut (Replaces: 7103P064-60) | 01 |
|
$ 12.06 | ||||
| 19 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 20 | 7103P118-60 | Nut | 01 |
|
- | ||||
| 21 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| NI | 8010P020-60 | Spacer, Door Handle | 01 |
|
- |
