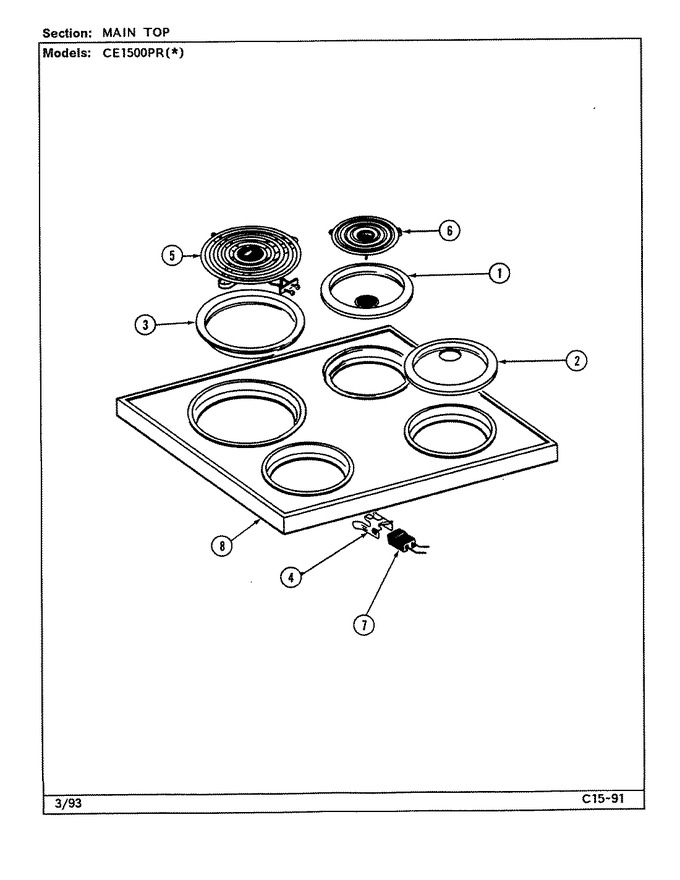

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10196406 | Bowl, Drip (w/hole) (Replaces: 7725P007-60) | 01 |
|
Immediately | $ 12.05 | |||
| 2 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P008-60) | 01 |
|
Immediately | $ 12.05 | |||
| 3 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P009-60) | 01 |
|
Immediately | $ 15.56 | |||
| 4 | 330031 | Clip, Receptacle (Replaces: 7112P059-60) | 01 |
|
Immediately | $ 14.48 | |||
| 5 | WPY04000035 | Element (8``) (Replaces: 7406P040-60) | 01 |
|
$ 160.60 | ||||
| 6 | WPY04000036 | Element (6``) (Replaces: 7406P038-60) | 01 |
|
$ 88.70 | ||||
| 7 | 12001676 | Receptacle, Surface Unit (Replaces: 7401P036-60) | 01 |
|
Immediately | $ 28.45 | |||
| 8 | 2002F065-81 | Top, Main (wht) | 01 |
|
- | ||||
| NI | 5175A040-60 | Harness, Coil Top | 01 |
|
- |
