01 - Cabinet
02 - Control Panel
03 - Front Bulkhead
04 - Heater Box (electric Models)
05 - Loading Door
06 - Motor
07 - Rear Bulkhead
08 - Terminal Block
SELECT A DIAGRAM
New Model Search:

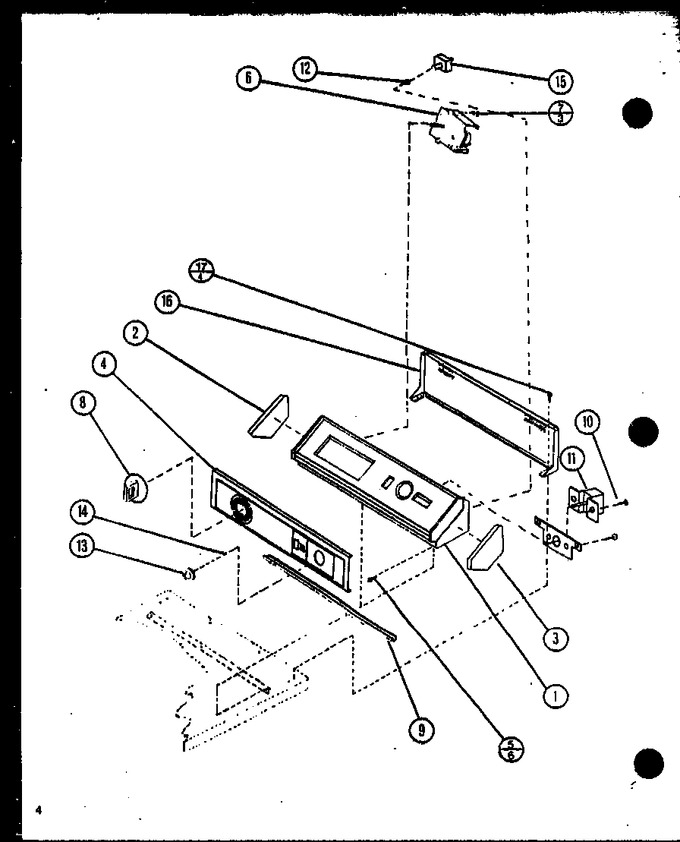

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61342 | Assy,hood & Mounting P |
|
- | |||||
| 2 | 32863 | Cap,end-l.h.-blk W/slv |
|
- | |||||
| 3 | 32864 | Cap,end-r.h.-blk W/slv |
|
- | |||||
| 4 | DE81-04170A | Panel,graphic (Replaces: 62633) |
|
$ 272.87 | |||||
| 5 | 31752 | Screw,no.8abx3/4 Pozidri |
|
- | |||||
| 6 | 59419 | Timer |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: Y59616) |
|
Immediately | $ 7.04 | ||||
| 8 | 61315 | Assy,timer Knob & Skirt |
|
- | |||||
| 9 | 61323R | Trim,bottom-amana |
|
- | |||||
| 10 | 31260 | Screw, No.8 X 3/8 Ind H |
|
$ 2.68 | |||||
| 11 | 59447 | Signal,rotary |
|
- | |||||
| 12 | 57584 | Nut |
|
- | |||||
| 13 | 32866 | Assy,knob-rotary-black |
|
- | |||||
| 14 | 10519 | Retainer |
|
- | |||||
| 15 | Y61511 | Switch,fabric Selector |
|
- | |||||
| 16 | 59970 | Control Hood, Rear Panel |
|
- | |||||
| 17 | WP90767 | Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
Immediately | $ 7.04 |
