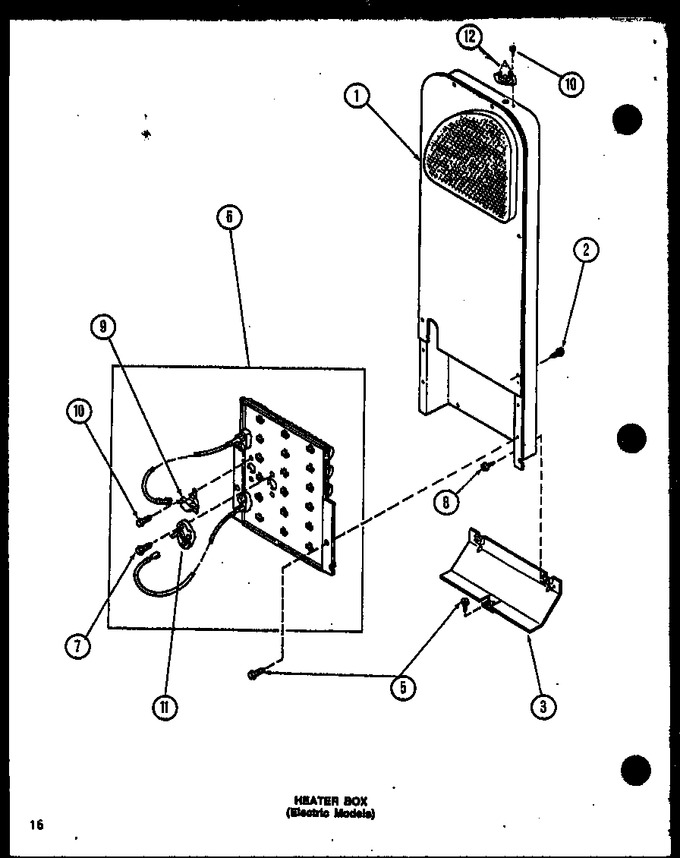

04 - Heater Box (electric Models)
05 - Loading Door
06 - Motor
07 - Rear Bulkhead
08 - Terminal Block
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61161P | Heater Box |
|
- | |||||
| 2 | WP27001200 | Hex Head Screw (Replaces: 56264) |
|
$ 6.91 | |||||
| 3 | 60952 | Shield,heat Duct |
|
- | |||||
| 5 | WP27001200 | Hex Head Screw (Replaces: 56264) |
|
$ 6.91 | |||||
| 6 | 61928 | Heater Assembly 208v |
|
$ 142.52 | |||||
| 6 | 61927 | Heater Assembly |
|
Immediately | $ 127.58 | ||||
| 7 | Sub. To D510151W | Screw,no.6-20x.44/.41 In (Replaces: 56693) |
|
- | |||||
| 8 | WP3390631 | Hex Head Screw (Replaces: 51780) |
|
$ 7.04 | |||||
| 9 | WPW10116735 | Thermostat (Replaces: 61210) |
|
$ 84.21 | |||||
| 10 | WP3177991 | Screw, 8b-18 X 1/4 He (Replaces: 23222) |
|
Immediately | $ 6.47 | ||||
| 11 | 490P3 | Kit, Thermal Fuse/therm |
|
Immediately | $ 86.74 | ||||
| 12 | 57239 | Thermostat,spst |
|
$ 19.85 |
