02 - Backguard
03 - Body Parts
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

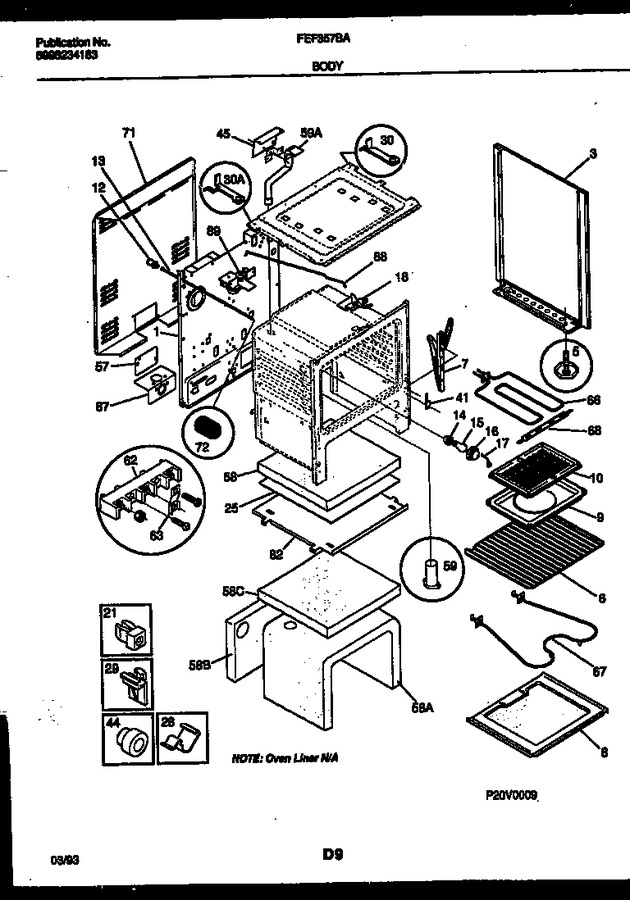

| 1 | 316029401 | Back-main, Autolatch |
|
- | |||||
| 3 | 5303269543 | Panel-bodyside Rh (almond) |
|
- | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 6 | 5303281625 | Rack Oven |
|
- | |||||
| 7 | 316007002 | Hinge-oven Door, (2) |
|
$ 244.07 | |||||
| 8 | 3203540 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303013568 | Pan-broiler |
|
- | |||||
| 10 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 12 | 316027701 | Switch-oven Light, Door Frame |
|
- | |||||
| 13 | 316026800 | Rod-light Switch |
|
$ 36.86 | |||||
| 14 | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Lamp/light Bulb, Oven (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204585 | Retainer-glass |
|
- | |||||
| 18 | 316036300 | Latch-door |
|
- | |||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 25 | 3200848 | Shield,heat ,lower |
|
- | |||||
| 28 | 316045000 | Clip-wire |
|
- | |||||
| 29 | 3051162 | Glide-drawer, Front |
|
Immediately | $ 8.22 | ||||
| 30 | 5303283574 | Bracket-hinge, Main Top Rh |
|
- | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 45 | 316048001 | Shield-wire, S/t Vent |
|
- | |||||
| 57 | 3203405 | Cover-access |
|
- | |||||
| 58 | 3200847 | Insulation, Oven Bottom |
|
- | |||||
| 59 | 5303271871 | Tube-oven Vent, Lower |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 63 | 5303212739 | Plate-ground Strap |
|
- | |||||
| 66 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 67 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 68 | 3051373 | Support-element |
|
- | |||||
| 30A | 5303283575 | Bracket-hinge, Main Top, Lh |
|
- | |||||
| 3B | 5303269545 | Panel Bodyside Lh (almond) |
|
- | |||||
| 3C | 3200834 | Shield-heat, Body Side (non-illustrated) |
|
- | |||||
| 58A | 316047700 | Insulation, Oven Wrapper |
|
- | |||||
| 58B | 3204582 | Insulation, Oven Back |
|
- | |||||
| 58C | 3131304 | Insulation, Oven Top |
|
- | |||||
| 59A | 316023601 | Tube-oven Vent, Upper |
|
- | |||||
| 59A | 316040100 | Bracket-mounting, Vent Tube (non-illustrated) |
|
- | |||||
| 5A | 3934056 | Anti-tip Kit (non-illustrated) |
|
- | |||||
| 5B | 5303288460 | Nut, T-type, Leveling Screw (non-illustrated) |
|
$ 27.14 | |||||
| 62A | 5303051099 | Nut, Hex, 10-32 (non-illustrated) |
|
- |
