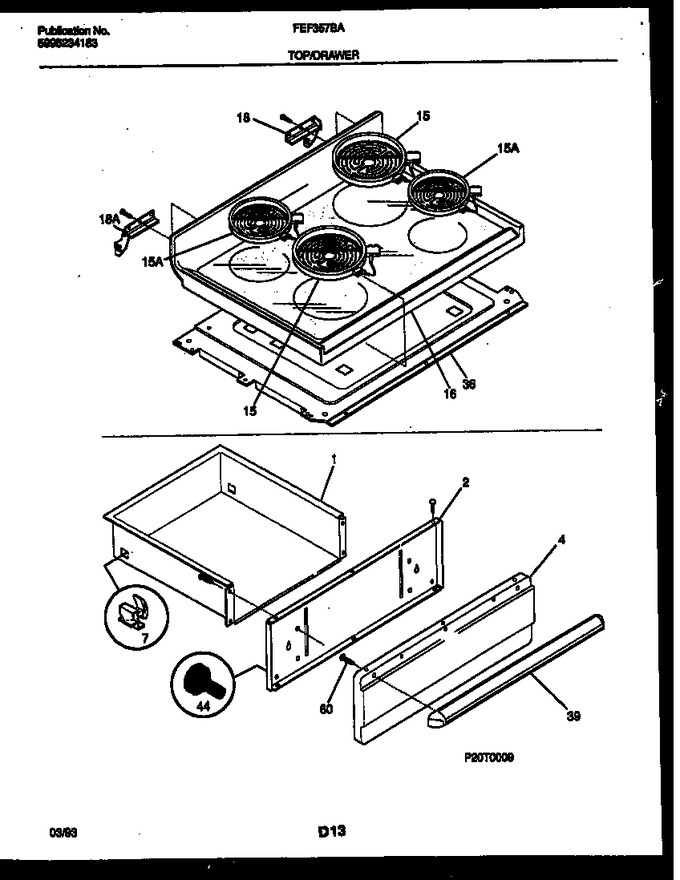

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 316056202 | Panel-drawer,almond |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 15 | 316049601 | Element-surface, Coil, Large/8 Inch, W/ Limit Switch |
|
- | |||||
| 16 | 316035506 | Main Top Assy, Glass/steel, Enamel, Almond |
|
- | |||||
| 18 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 36 | 316033601 | Panel-element Mtg, Glass Top |
|
- | |||||
| 39 | 316026100 | Handle-drawer, Black |
|
- | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 60 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| *73293 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *73294 | 5309951550 | Cleaner-cooktop |
|
- | |||||
| 15A | 316049600 | Element-surface, Coil, Small/6 Inch, W/ Limit Switch |
|
$ 151.67 | |||||
| 16A | 316001713 | Harness-top Elements (non-illustrated) |
|
- | |||||
| 16B | 316034800 | Light/lamp, Ind, Hot Surface (non-illustrated) |
|
- | |||||
| 16C | 316035700 | Lens-light/lamp, Indicator (non-illustrated) |
|
- | |||||
| 18A | 5303288567 | Screw, 8-18 X 3/8, (4) (non-illustrated) |
|
- | |||||
| 18A | 5303273063 | Hinge-main Top (lh) |
|
$ 48.41 | |||||
| 36A | 316023300 | Clip-spring, Element Mtg (non-illustrated) |
|
- | |||||
| 36B | 316041000 | Stud-index, Top Element (non-illustrated) |
|
- | |||||
| 4A | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated) |
|
- |
