Diagram for 01 - Access Panel
01 - Access Panel

Diagram for 02 - Blower Motor
02 - Blower Motor

Diagram for 03 - Blower Motor (cooling)
03 - Blower Motor (cooling)

Diagram for 04 - Body
04 - Body

Diagram for 05 - Control Panel
05 - Control Panel

Diagram for 06 - Door
06 - Door

Diagram for 07 - Internal Controls
07 - Internal Controls

Diagram for 08 - Oven
08 - Oven

Diagram for 09 - Top
09 - Top


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 704248 Frame (blk) Appelez-nous -
2 703435 Panel, Base Appelez-nous -
3 Y702896 Spacer, Base Door Appelez-nous -
4 Y703965 Liner, Door Appelez-nous -
5 Y702744 Panel, Kick Appelez-nous -
6 71002058 Screw   (Replaces: Y702124) Special Order $ 5.82

7 Y702633 Stud, Ball Appelez-nous -
8 W11233072 Screw (blk)   (Replaces: Y704237) In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

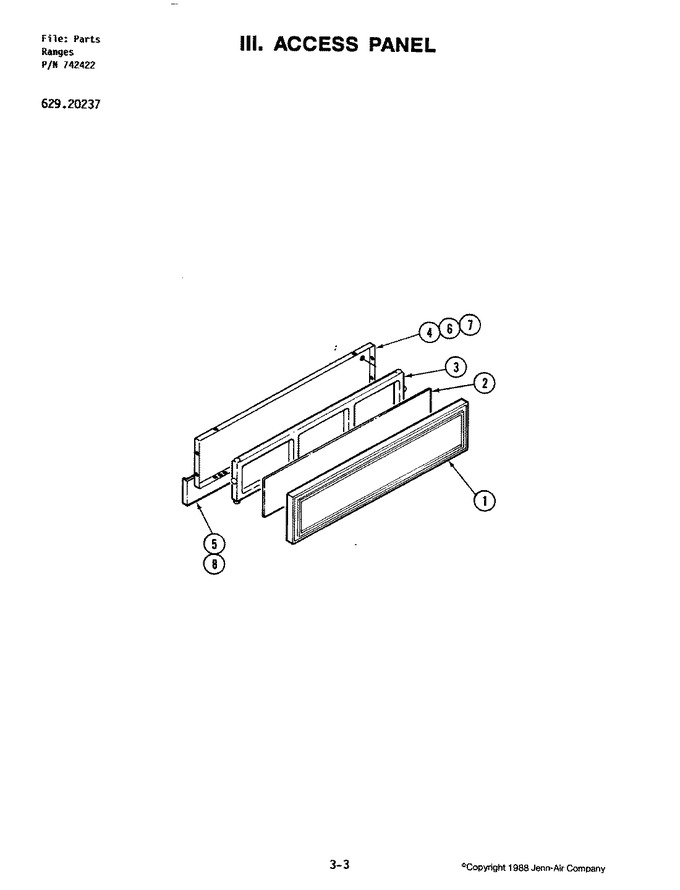

Diagram for 20237
