Diagram for 01 - Access Panel
01 - Access Panel

Diagram for 02 - Blower Motor
02 - Blower Motor

Diagram for 03 - Blower Motor (cooling)
03 - Blower Motor (cooling)

Diagram for 04 - Body
04 - Body

Diagram for 05 - Control Panel
05 - Control Panel

Diagram for 06 - Door
06 - Door

Diagram for 07 - Internal Controls
07 - Internal Controls

Diagram for 08 - Oven
08 - Oven

Diagram for 09 - Top
09 - Top


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y702542 Bracket, Mounting Motor Appelez-nous -
2 Y702549 Motor, Fan Appelez-nous -
3 Y702525 Blade, Fan Appelez-nous -
4 Y702345 Plate, Back Appelez-nous -
5 WP90767 Screw   (Replaces: Y700502) In-Stock Immediately $ 7.04

6 703648 Harness, Backsplash Appelez-nous -
6 M0282005 Nut, Hex   (Replaces: 701719) Special Order $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

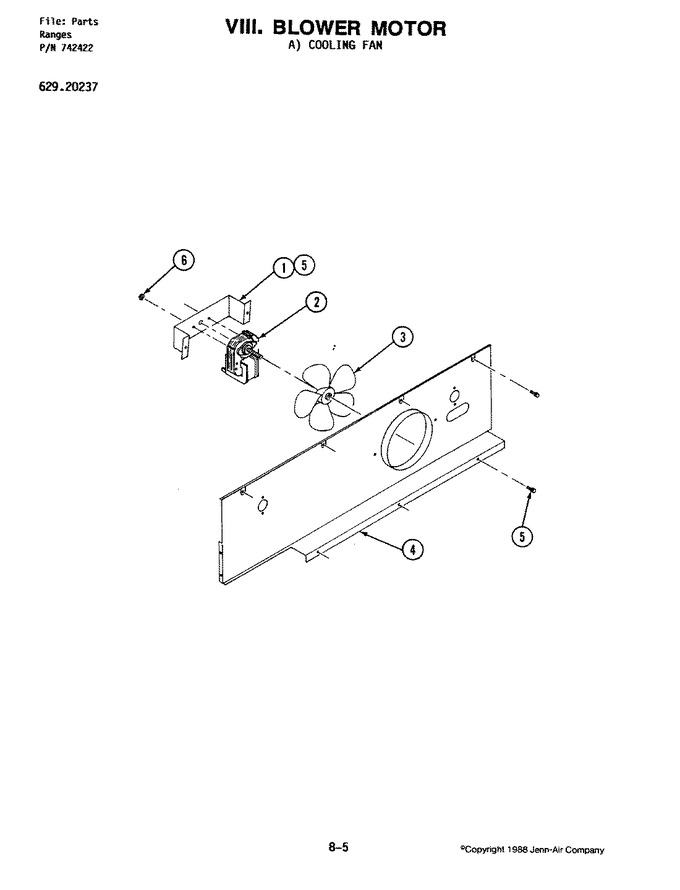

Diagram for 20237
