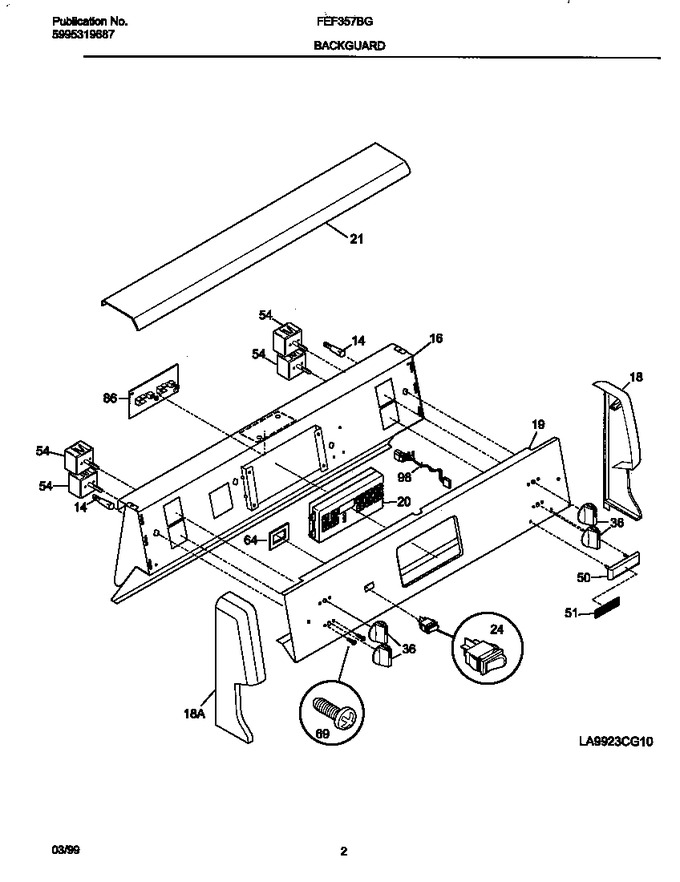

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	318044604		Light-indicator,red		Appelez-nous	-
16	318117423		Plate,instrument Mtg		Appelez-nous	-
18	318118305		End Cap,black ,lh		Appelez-nous	-
18	318118304		End Cap,black ,rh		Appelez-nous	-
19	318117150		Panel-control,metal ,black		Appelez-nous	-
20	318013009		Clock/timer,electronic		Appelez-nous	-
21	318118011		Trim-canopy,black   (Replaces: 318118002)		Appelez-nous	-
24	316083101		Switch-rocker, Oven Light, Black, Rh				$ 85.01
36	318034803		Knob-control,black ,(4)		Appelez-nous	-
50	318146602		Nameplate,black				$ 5.40
51	318075700		Insert-nameplate		Appelez-nous	-
54	318120500		Switch-surface Unit				$ 186.80
64	318112200		Mtg Rocker Switch		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
86	318111201		Plate-connecting		Appelez-nous	-
98	318092405		Wiring Harness		Appelez-nous	-
*19680	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*19681	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*19682	5303310510		Screw <10-24 X 5/8 >				$ 14.18
*19683	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*19684	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*19685	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
*19686	154079601		Nut   (Replaces: 3201885)				$ 0.41
*19687	5303308449		Fastener		Appelez-nous	-
