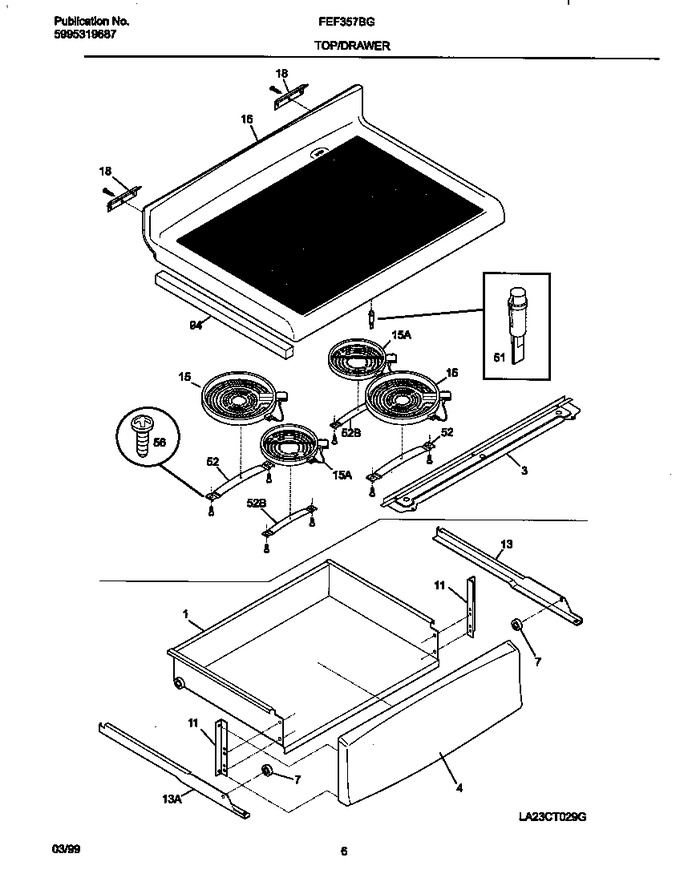

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 318107103)			Immediately	$ 143.39
3	318144301		Support-main Top		Appelez-nous	-
4	318044301		Panel-drawer,white		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318107500		Bracket-support,drawer ,(2)				$ 21.85
13	318018101		Channel-drawer,lh				$ 63.11
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
15	318198817		Element-surface, Radiant, Small/6 Inch ,1200w,limit Sw I   (Replaces: 316010203)			Immediately	$ 192.78
15	318198834		Element-surface,radiant , Large/8 Inch ,2100w,limit Sw I   (Replaces: 316010204)				$ 205.36
16	318043850		Main Top,glass		Appelez-nous	-
18	318074400		Hinge-main Top,(2)		Appelez-nous	-
51	5303297484		Light-indicator, Hot Surface		Appelez-nous	-
52	318122000		Spring-element Mtg, 1200w & 1800w		Appelez-nous	-
52	318122003		Spring-element Mtg, 2200w		Appelez-nous	-
56	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
94	318132608		Insulation-top		Appelez-nous	-
*19694	5303325978		Shoulder Screw <8-18 X 1/2 >,8-18 X 1/2		Appelez-nous	-
