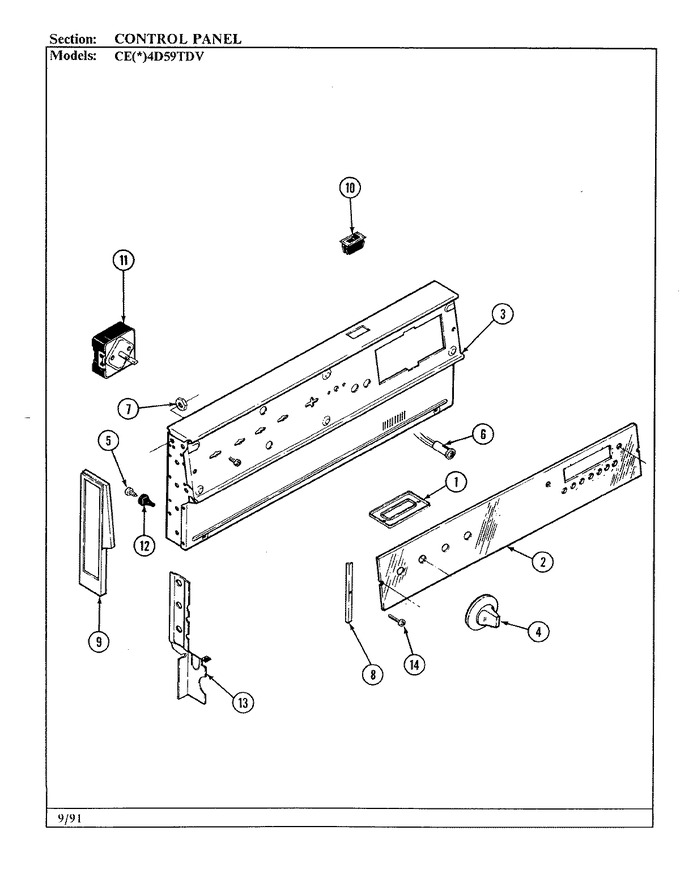

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F296-51 | Gasket, Cover | 1 |
|
- | ||||
| 1 | 7212P032-60 | Seal, Cover | 1 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 1 | 4005F295-51 | Cover, Upper Flue Box | 1 |
|
- | ||||
| 2 | 7910P090-60 | Glass Bkgd | 1 |
|
- | ||||
| 2 | 7910P115-60 | Backguard, Glass | 37 |
|
- | ||||
| 3 | 2601W268-81 | Backguard Assy | 1 |
|
- | ||||
| 3 | 4005F284-80 | Cover, Bkgd Wire | 1 |
|
- | ||||
| 3 | 2601W325-84 | Panel Bkgd | 44 |
|
- | ||||
| 3 | 2601W325-81 | Backguard Assy | 44 |
|
- | ||||
| 3 | 2601W268-84 | Backguard Assy | 1 |
|
- | ||||
| 3 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 4 | 7711P321-60 | Knob, Switch | 1 |
|
- | ||||
| 5 | W11164114 | Screw (Replaces: 7101P047-60) | 1 |
|
$ 3.76 | ||||
| 6 | 7407P029-60 | Light, Signal | 1 |
|
- | ||||
| 7 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 8 | 7742P009-60 | Trim, Retainer Glass | 37 |
|
- | ||||
| 8 | 7720P088-60 | Trim, Glass Ret | 1 |
|
- | ||||
| 9 | 7726P031-60 | Trim, Bkgd End (lt) | 1 |
|
- | ||||
| 9 | 7726P032-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 10 | 7403P067-60 | Switch, Rocker (blk) | 1 |
|
$ 91.35 | ||||
| 11 | 7403P183-60 | Switch, Inf. 250v | 1 |
|
- | ||||
| 12 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 13 | 3807F348-51 | Support, Bkgd End Lf | 1 |
|
- | ||||
| 13 | 3807F349-51 | Support, Bkgd End Rt | 1 |
|
- | ||||
| 13 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 14 | 7101P008-60 | Screw | 1 |
|
- |
