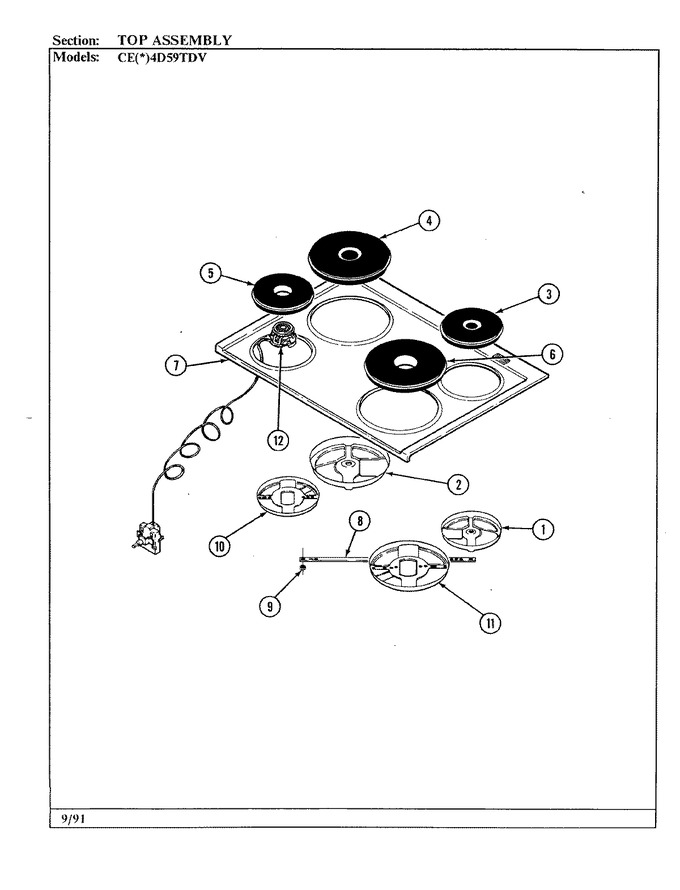

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8004P011-60 | Support, 6`` | 1 |
|
- | ||||
| 2 | 8004P012-60 | Support, 8`` | 1 |
|
- | ||||
| 3 | WP3147131 | Element (6``) (Replaces: 7406P023-60) | 1 |
|
$ 244.76 | ||||
| 4 | 7406P024-60 | Element, Solid Disc (8``) | 1 |
|
- | ||||
| 5 | 7406P019-60 | Element (6``- Auto Switch) | 1 |
|
- | ||||
| 6 | 7406P022-60 | Element (8``- Auto Switch) | 1 |
|
- | ||||
| 7 | 2002W075-81 | Top Assy | 1 |
|
- | ||||
| 7 | 2002W075-84 | Top Main | 1 |
|
- | ||||
| 8 | 3801F100-51 | Bracket | 1 |
|
- | ||||
| 9 | 7103P075-60 | Nut, Keps | 1 |
|
- | ||||
| 10 | 8004P009-60 | Support, 6``(auto) | 1 |
|
- | ||||
| 11 | 7103P074-60 | Nut, Surface Element | 1 |
|
- | ||||
| 11 | 8004P010-60 | Support, 8``(auto) | 1 |
|
- | ||||
| 12 | 7403P175-60 | Switch, Automatic | 1 |
|
- |
