SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

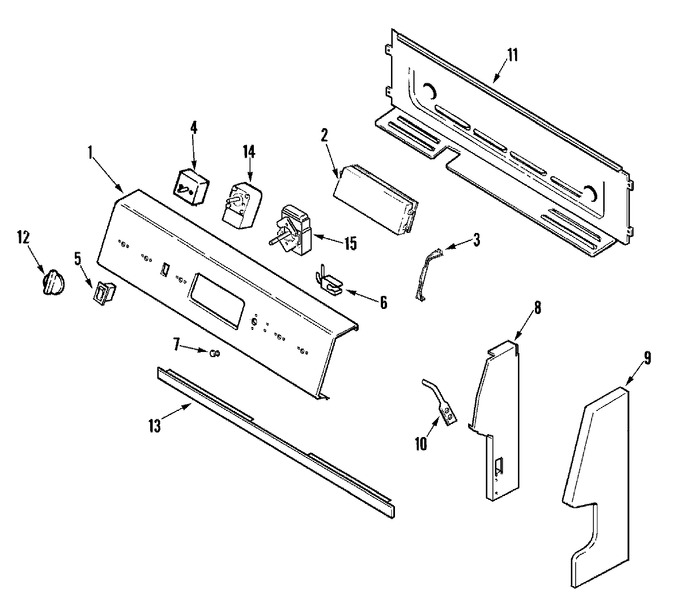

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003707 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 2 | 74006055 | Clock (wht) | 10 |
|
- | ||||
| 3 | 7101P348-60 | Screw (wht) | 10 |
|
- | ||||
| 3 | 74003426 | Bracket, Clock | 10 |
|
- | ||||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 5 | 74008717 | Switch, Rocker (wht) (Replaces: 74003364) | 10 |
|
$ 72.68 | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | 74003365 | Support, Control Panel (rt) | 10 |
|
- | ||||
| 8 | 74003366 | Support, Control Panel (lt) | 10 |
|
- | ||||
| 9 | 74003370 | End Cap, Control Pnl (lt-wht) | 10 |
|
$ 33.65 | ||||
| 9 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 11.89 | ||||
| 9 | 74002451 | Screw (1 3/16``-wht) | 10 |
|
- | ||||
| 9 | 74003369 | End Cap, Control Pnl (rt-wht) | 10 |
|
$ 31.74 | ||||
| 10 | 74003371 | Hinge, Main Top (rod) | 10 |
|
- | ||||
| 10 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74004550 | Housing, Control Panel | 10 |
|
- | ||||
| 11 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | WP74003373 | Knob, Switch (wht) (Replaces: 74003373) | 10 |
|
$ 16.21 | ||||
| 13 | 74003374 | Shield, Sight | 10 |
|
- | ||||
| 13 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 14 | WP7403P255-60 | Switch, Selector (Replaces: 74002929) | 10 |
|
$ 131.41 | ||||
| 15 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 15 | 74003708 | Thermostat, Oven | 10 |
|
- | ||||
| NI | 74006617 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 12001323 | Wire/terminal Kit | 10 |
|
- |
