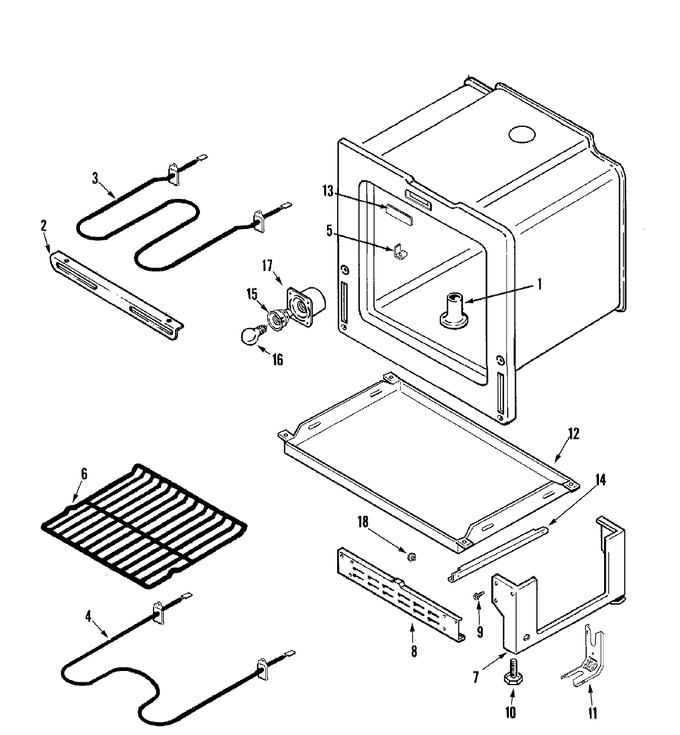

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 8026P019-60 | Tube, Vent | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74003386 | Support, Broil Element | 10 |
|
- | ||||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | WPW10310249 | Element, Broil (4 Pass) (Replaces: 74003041) | 10 |
|
Immediately | $ 112.33 | |||
| 4 | WP74010750 | Element, Bake (Replaces: 74003039) | 10 |
|
Immediately | $ 47.69 | |||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 11.07 | |||
| 6 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 10 |
|
Immediately | $ 65.15 | |||
| 7 | 74003393 | Pedestal, Side | 10 |
|
- | ||||
| 8 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | W11665456 | Leg, Leveling (Replaces: 74002373) | 10 |
|
Immediately | $ 25.30 | |||
| 11 | WP7101P485-60 | Screw (Replaces: 7101P352-60) | 10 |
|
$ 26.33 | ||||
| 11 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74005564) | 10 |
|
Immediately | $ 4.69 | |||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 74003392 | Retainer, Insulation (bottom) | 10 |
|
- | ||||
| 13 | 74003406 | Plug, Lock Slot | 10 |
|
- | ||||
| 14 | 74003565 | Runner, Drawer | 10 |
|
- | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74003387 | Receptacle, Bulb | 10 |
|
$ 5.84 | ||||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 16 | WP67002552 | Lamp, Oven (Replaces: 7407P027-60) | 10 |
|
Immediately | $ 10.58 | |||
| 17 | 74003388 | Housing, Bulb | 10 |
|
- | ||||
| 18 | WP488130 | Nut (Replaces: 7103P082-60) | 10 |
|
$ 6.27 | ||||
| 18 | 74003566 | Roller, Drawer | 10 |
|
- |
