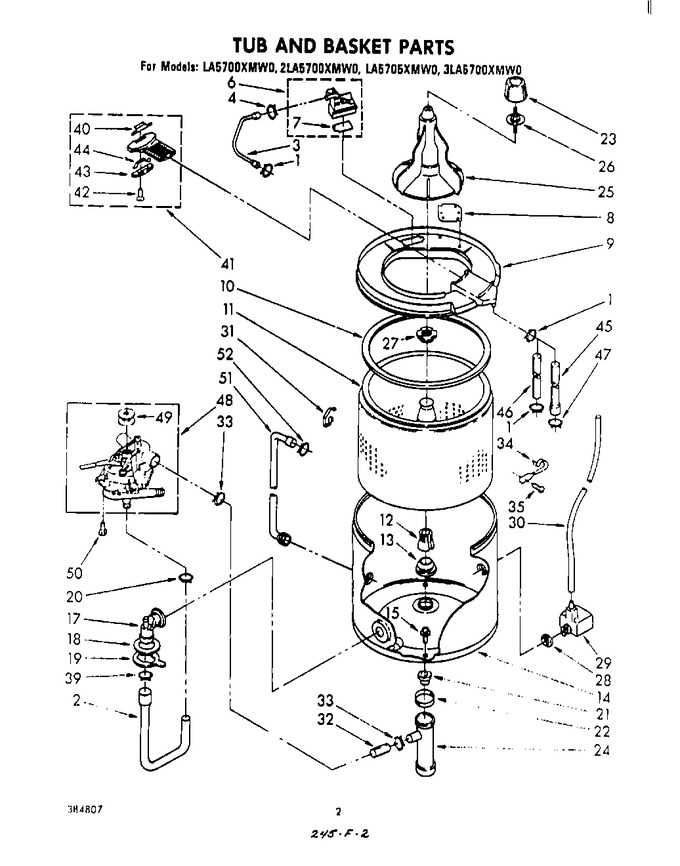

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP596669 | Clamp, Hose (Replaces: 272846) |
|
Immediately | $ 7.56 | ||||
| 2 | 92272 | Hose, Recirculating |
|
- | |||||
| 3 | 356349 | Hose, Water Inlet |
|
- | |||||
| 4 | WP596669 | Clamp, Hose (Replaces: 272847) |
|
Immediately | $ 7.56 | ||||
| 6 | 366072 | Inlet, Water |
|
- | |||||
| 7 | 355584 | Flapper |
|
- | |||||
| 8 | 355852 | Plate, Snubber |
|
- | |||||
| 9 | 381978 | Ring & Filter, Tub (includes Illus. 8 & 41) |
|
- | |||||
| 10 | 383553 | Seal, Tub Ring |
|
- | |||||
| 11 | 383960 | Basket |
|
- | |||||
| 12 | 96384 | Block, Drive |
|
$ 32.89 | |||||
| 13 | W10814296 | Gasket, Centerpost (Replaces: 96690) |
|
Immediately | $ 8.26 | ||||
| 14 | 384125 | Tub (non-suds) |
|
- | |||||
| 14 | 359591 | Tub (suds) |
|
- | |||||
| 15 | WP358237 | Screw & Washer, Tub (4) (Replaces: 370571) |
|
Immediately | $ 7.97 | ||||
| 17 | 92555 | Funnel, Drain |
|
- | |||||
| 18 | 50909 | Gasket |
|
- | |||||
| 19 | 50926 | Lockwasher |
|
$ 5.00 | |||||
| 20 | WP285655 | Clamp, Hose (Replaces: 272853) |
|
Immediately | $ 7.55 | ||||
| 21 | 93553 | Hose, Tub Outlet |
|
- | |||||
| 22 | 9421321 | Clip, Hose |
|
- | |||||
| 23 | 358431 | Cap, Agitator |
|
- | |||||
| 24 | 84091 | Manifold |
|
- | |||||
| 25 | 363633 | Agitator |
|
$ 68.97 | |||||
| 26 | 358440 | Stud, Agitator Shaft |
|
- | |||||
| 27 | WP21366 | Locknut (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 28 | 351830 | Seal |
|
$ 5.84 | |||||
| 29 | 360804 | Air Dome Assembly |
|
- | |||||
| 30 | WP353244 | Hose, Pressure Switch (Replaces: 353405) |
|
Immediately | $ 53.94 | ||||
| 31 | 359763 | Clip, Tub Ring (4) |
|
- | |||||
| 32 | DE81-06162A | Hose (Replaces: 92231) |
|
$ 78.75 | |||||
| 33 | WP285655 | Clamp, Hose (Replaces: 272858) |
|
Immediately | $ 7.55 | ||||
| 34 | 358339 | Bracket, Hose |
|
- | |||||
| 35 | WP273556 | Screw, 10-16 X 5/8 (Replaces: 357640) |
|
Immediately | $ 7.04 | ||||
| 39 | WP356138 | Clamp, Hose (Replaces: 272856) |
|
Immediately | $ 7.67 | ||||
| 40 | 357249 | Latch |
|
- | |||||
| 41 | 359785 | Filter |
|
- | |||||
| 42 | 176360 | Screw (2) |
|
- | |||||
| 43 | 357250 | Retainer |
|
- | |||||
| 44 | 94403 | Spring |
|
- | |||||
| 45 | 357345 | Hose, Pump To Filter (suds) |
|
- | |||||
| 46 | 357346 | Hose, Pump To Filter (non-suds) |
|
- | |||||
| 47 | WP285655 | Clamp, Hose (Replaces: 272852) |
|
Immediately | $ 7.55 | ||||
| 48 | 357729 | Pump, Complete (non-suds) (refer To Page 8 For Further Breakdown) |
|
- | |||||
| 48 | 362175 | Pump, Complete (suds) |
|
- | |||||
| 49 | 359630 | Pulley, Pump |
|
- | |||||
| 50 | 386011 | Screw, Pump To Gearcase (Replaces: 96867) |
|
- | |||||
| 51 | 352818 | Hose, Dispenser |
|
- | |||||
| 52 | WP596669 | Clamp, Hose (Replaces: 287859) |
|
Immediately | $ 7.56 |
