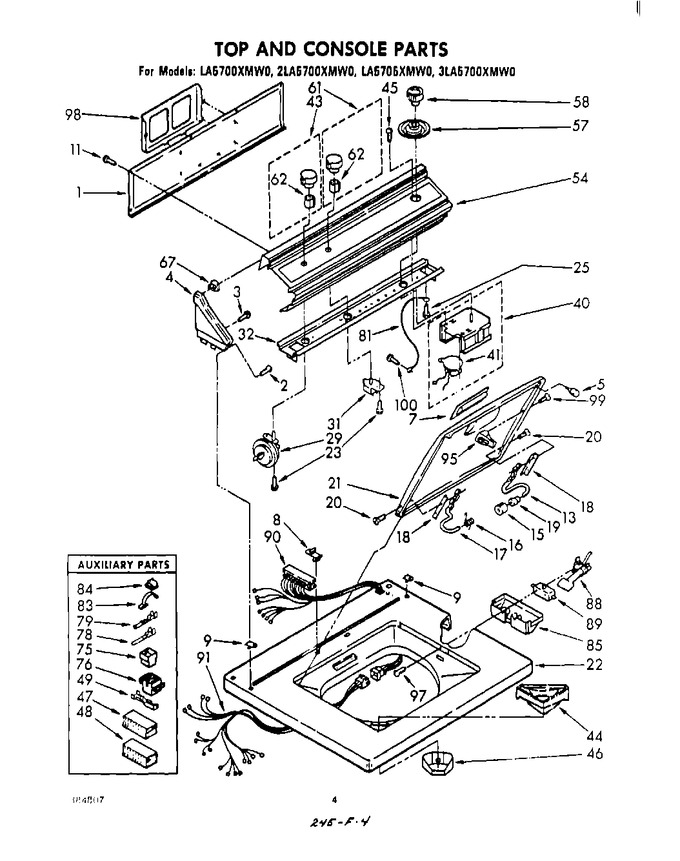

03 - Top And Console


04 - Drive


05 - Cabinet


06 - Water Pump , Water System (suds Only)


07 - Miscellaneous , Literature And Optional


08 - Gearcase


09 - Basket Drive And Brake


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	359372		Panel, Rear		Appelez-nous	-
2	358225		Screw, 8-18 X 1		Appelez-nous	-
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	377283		Cap, End L.h. (golden Harvest)		Appelez-nous	-
4	375305		Cap, End (l.h.) (white)		Appelez-nous	-
4	375313		Cap, End (l.h.) (almond)		Appelez-nous	-
4	375318		Cap, End (l.h.) (golden Harvest)		Appelez-nous	-
4	377284		Cap, End (l.h.) (toast)		Appelez-nous	-
4	377285		Cap, End (l.h.) (platinum Cap, End (r.h.))		Appelez-nous	-
4	375309		Cap, End L.h. (white)		Appelez-nous	-
4	375315		Cap, End (l.h.) (almond)		Appelez-nous	-
4	377286		Cap, End L.h. (toast)		Appelez-nous	-
4	377287		Cap, End L.h. (platinum)		Appelez-nous	-
5	WP9724509		Bumper, Rubber   (Replaces: 93770)			Immediately	$ 7.14
7	379884		Handle, Lid (white)		Appelez-nous	-
7	379891		Handle, Lid (platinum)		Appelez-nous	-
7	379890		Handle, Lid (toast)		Appelez-nous	-
7	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
7	379885		Handle, Lid (almond)		Appelez-nous	-
8	358472		Stop, Push-in Top (1)		Appelez-nous	-
9	358473		Nut, Push-in (2)				$ 5.84
11	W11693756		Screw, 8-15 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
15	91605		Bumper, Lid Hinge		Appelez-nous	-
16	DE81-05611A		Spring, Hinge (l.h.)   (Replaces: 92398)				$ 150.30
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw   (Replaces: 18724)			Immediately	$ 6.47
21	382797		Lid (platinum)		Appelez-nous	-
21	382796		Lid (toast)		Appelez-nous	-
21	379963		Lid (golden Harvest)		Appelez-nous	-
21	379960		Lid (almond)		Appelez-nous	-
21	379959		Lid (white)		Appelez-nous	-
22	380283		Top (white)		Appelez-nous	-
22	386484		Top (platinum)		Appelez-nous	-
22	386483		Top (toast)		Appelez-nous	-
22	380287		Top (golden Harvest)		Appelez-nous	-
22	380284		Top (almond)		Appelez-nous	-
23	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
25	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
29	359647		Switch, Water Level (alternate)		Appelez-nous	-
29	363301		Switch, Water Level (alt.)		Appelez-nous	-
29	660930		Switch, Water Level		Appelez-nous	-
31	370146		Switch, Water Temperature (alt.)		Appelez-nous	-
31	660393		Switch, Water Temperature		Appelez-nous	-
31	370145		Switch, Water Temperature (alt.)		Appelez-nous	-
32	359708		Bracket, Control		Appelez-nous	-
40	660973		Timer, 60 Hz.		Appelez-nous	-
40	385347		Timer, 50 Hz. (240 Volts) (c.c.a.) (3la5700xmw0)		Appelez-nous	-
40	385345		Timer, 50 Hz. (120 Volts) (c.c.a.) (2la5700xmw0)		Appelez-nous	-
40	385348		Timer, 60 Hz. (mallory) (non Suds) (alt.)		Appelez-nous	-
40	385344		Timer, 60 Hz. (alt.) (non-suds) (c.c.a.)		Appelez-nous	-
41	362681		Motor, Timer (60 Hz.) (use W/c.c.a. Timer)		Appelez-nous	-
41	357915		Motor, Timer (240 Volts) (use W/385347 Timer)		Appelez-nous	-
41	362682		Motor, Timer (50 Hz.) (use W/c.c.a. Timer)		Appelez-nous	-
41	365941		Motor, Timer (60 Hz.) (use W/mallory Timer)		Appelez-nous	-
43	690297		Knob Assembly, Water Level		Appelez-nous	-
44	352821		Bezel, Dispenser		Appelez-nous	-
45	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.13
46	352827		Tray, Dispenser		Appelez-nous	-
47	W10876590		Block, Disconnect   (Replaces: 352089)				$ 11.48
48	352090		Block, Disconnect		Appelez-nous	-
49	352088		Terminal, Female				$ 5.83
54	384765		Panel, Control (non-suds)		Appelez-nous	-
54	384766		Panel, Control (suds)		Appelez-nous	-
57	359254		Dial, Timer		Appelez-nous	-
58	359206		Knob, Timer		Appelez-nous	-
61	690300		Knob Assembly, Water Temperature		Appelez-nous	-
62	WP688805		Clip, Control Knob   (Replaces: 688805)			Immediately	$ 7.03
67	689559		Clip, End Cap		Appelez-nous	-
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
81	3184020		Wire, Ground   (Replaces: 54570)				$ 74.50
83	WP98997		Clip   (Replaces: 98997)				$ 9.98
84	WP90016		Clip   (Replaces: 90016)				$ 10.19
85	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
88	370959		Switch Actuator Assembly				$ 33.01
89	W10820036		Switch, Lid   (Replaces: 660308)			Immediately	$ 27.45
89	00-6163		Switch, Lid (alt.)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid (alt.)   (Replaces: 364091)			Immediately	$ 27.45
89	W10820036		Switch, Lid (alt.)   (Replaces: 367034)			Immediately	$ 27.45
89	359327		+harness, Console (non-suds)		Appelez-nous	-
90	359383		Harness, Console (suds)		Appelez-nous	-
91	358115		Harness, Base		Appelez-nous	-
91	88401		Harness, Cabinet (suds)		Appelez-nous	-
95	357633		Strike, Lid Switch		Appelez-nous	-
97	354764		Screw & Washer		Appelez-nous	-
98	357645		Rack, Literature		Appelez-nous	-
99	354975		Screw & Washer		Appelez-nous	-
100	WP681414		Ground Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
	385336		Timer, 60 Hz. (c.c.a.) (suds)		Appelez-nous	-
