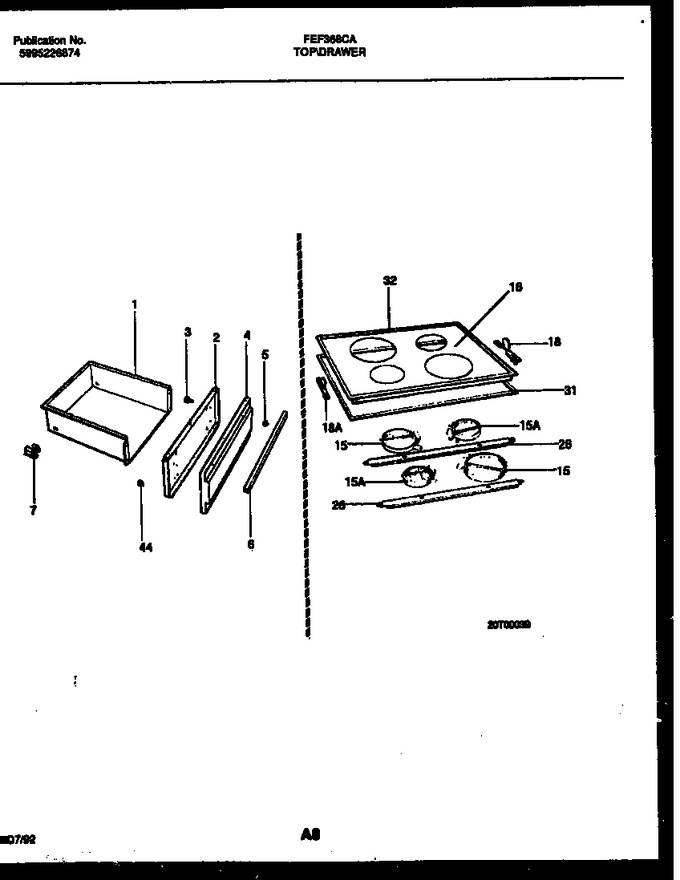

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 3 | 5303281651 | Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2 |
|
- | |||||
| 4 | 3131117 | Panel-drawer, White |
|
- | |||||
| 5 | 3131387 | Fastener-spacer, Push-in Nut, Nylon |
|
- | |||||
| 6 | 316019501 | Handle-drawer, White |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 15 | 3204915 | Element-large, W/ Limit Switch |
|
- | |||||
| 16 | 316035800 | Main Top-glass, Black |
|
- | |||||
| 18 | 5303291056 | Bracket-hinge, Main Top, Rh |
|
- | |||||
| 26 | 5303271632 | Channel-top Elem Mtg. |
|
- | |||||
| 31 | 316045900 | Seal-glass Top |
|
- | |||||
| 32 | 316051501 | Trim Frame, Glass Top |
|
- | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *67148 | 3015757 | Cleaner-cook Top Bt-101 |
|
- | |||||
| 15A | 3204913 | Element-small, W/ Limit Switch |
|
- | |||||
| 15B | 316001705 | Harness-top Elements (non-illustrated) |
|
- | |||||
| 18A | 5303291055 | Bracket-hinge, Main Top, Lh |
|
- | |||||
| 1A | 5303281584 | Screw 8-18 X 1/2 Tr Hd Sdr (non-illustrated) |
|
- | |||||
| 4A | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated) |
|
- |
